Material Stainless steel
Shape Circular
Features Vertical slide
Suitability Conduits
Dimensions (mm) W220mm x H442mm x D400mm, 100mm dia. pipe

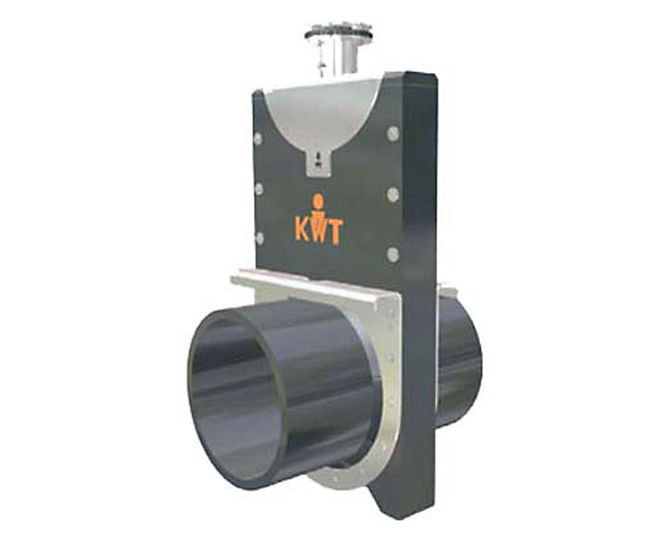

Althon inline penstock 100mm is used in surface, sewage and process water applications for isolation inline with a pipeline system. It can be used both above and below ground.

The penstock is guaranteed to a maximum pressure of 10MwC (tested up to 20MwC).

Manufactured in HDPE and stainless steel 316, it has a high chemical resistance.

  • 100mm diameter pipe
  • Used above and below ground
  • 10MwC on/off-seating as standard
  • Manual or actuated operation
  • High chemical resistance
  • Virtually no maintenance

Standard connection types

PVC and HDPE pipe connection (P-model)
PN10 flange connection (F-model)

Material

Housing: HDPE, strengthened with stainless steel 316
Moving plate: stainless steel 316
Spindle: stainless steel 316
Spindle block: POM
Seals: EPDM

Dimensions

Pipe diameter
100mm

Penstock
W220mm x H442mm x D400mm


Althon inline penstock 100mm is used in surface, sewage and process water applications for isolation inline with a pipeline system. It can be used both above and below ground.

The penstock is guaranteed to a maximum pressure of 10MwC (tested up to 20MwC).

Manufactured in HDPE and stainless steel 316, it has a high chemical resistance.

  • 100mm diameter pipe
  • Used above and below ground
  • 10MwC on/off-seating as standard
  • Manual or actuated operation
  • High chemical resistance
  • Virtually no maintenance

Standard connection types

PVC and HDPE pipe connection (P-model)
PN10 flange connection (F-model)

Material

Housing: HDPE, strengthened with stainless steel 316
Moving plate: stainless steel 316
Spindle: stainless steel 316
Spindle block: POM
Seals: EPDM

Dimensions

Pipe diameter
100mm

Penstock
W220mm x H442mm x D400mm
