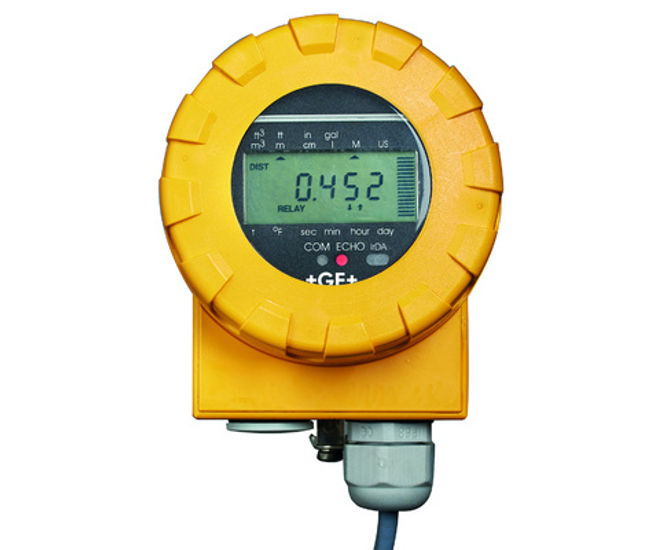

Type 2260 ultrasonic level transmitter
The Type 2260 is a rugged, high performance ultrasonic level measurement transmitter, with a transducer and processing electronics and a display / programming unit incorporated in one single housing. Type 2260 level transmitters use established high-end pulse echo transducers, which provide narrow beam angles and reliable measurement ranges up to
+/- 0.2% of measurement value; +/-0.05% of measurement range
The Type 2260 is a rugged, high performance ultrasonic level measurement transmitter, with a transducer and processing electronics and a display / programming unit incorporated in one single housing.
Type 2260 level transmitters use established high-end pulse echo transducers, which provide narrow beam angles and reliable measurement ranges up to a distance of 15m.
For small, stand-alone tanks the transmitter provides a simple 2-wire 4 to 20 mA output, with additional power relay contacts. It can be programmed using push buttons and a large graphic display.
For large and / or multiple tank applications versions with HART interface are recommended, communicating directly with a panel mount controller or PLC. The HART protocol can easily be used for programming these versions.
