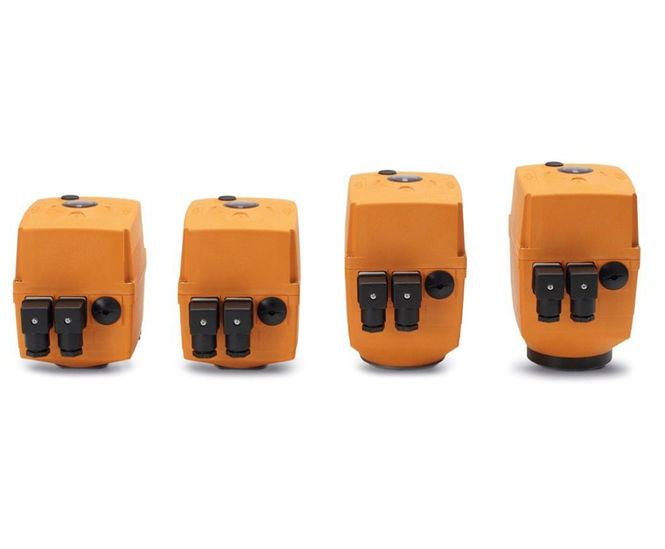

Type EA25, EA45, EA120 and EA250 electric actuators feature very high peak torques ranging from 25 to 250 Nm. Therefore they are able to automate a wide range of valves.

Function

Electric actuators are used to operate valves with a rotating angle from 90 to 180°. The actuators can be installed on any common valves with interface according to ISO 5211.

Accessories allow using them not only as an on / off actuator but also in continuous operation.

Applications

  • Chemical process industry
  • Water treatment
  • Refrigeration

Benefits and features

  • Position feedback via relais (OPEN/CLOSE/MIDDLE)
  • Heating element to prevent condensation
  • Optical position indicator with LED status monitoring
  • Third position between "OPEN" and "CLOSE" optional
  • Relay output for "ready to operate"
  • 7-segment error display
  • Integrated emergency manual override with magnetic lock
  • Robust PP-GF housing with very good chemical resistance
  • Long service life due to robust design and superior electronics
  • Flexible configuration thanks to modular concept
  • Numerous monitoring and control options
  • Easy handling
  • Can be used anywhere thanks to universal power supply and standard interfaces
