Technology Separation

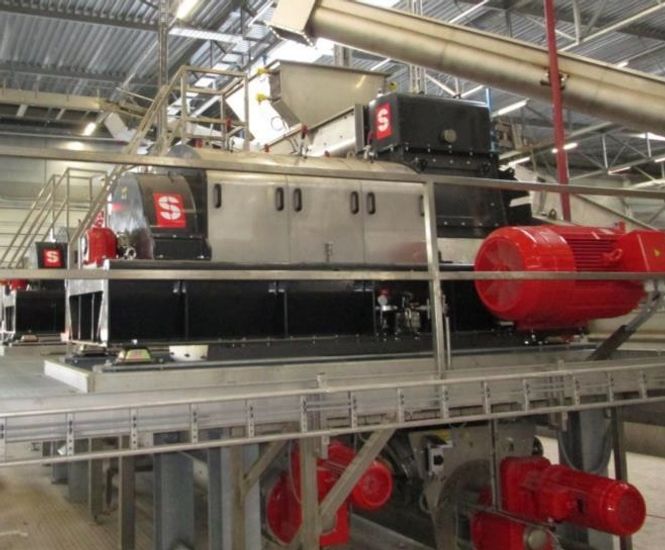

The SMIMO120 was developed for separating large quantities of foodstuffs from its packaging with the organic part being cut/ground. The machine separates the organic content on one side of the machine from the remaining packaging.

With a capacity up to 35m3/hr and high separation efficiency, the special design allows for processing both mono as well as mixed flows.

A larger unit, the SMIMO160 is also available. Both machines are available in steel or stainless steel.

Applications

  • Packed and unpacked foodstuffs
  • Potatoes, fruit and vegetables
  • Environment and recycling
  • Oils and fats
  • Manure and digestate

Advantages

  • Suitable for packed and unpacked food waste
  • Grinding and unpacking in one machine possible
  • Less power consumption per m3 of product
  • Able to handle larger products
  • Dryer & cleaner packaging materials on discharge
  • Larger remains of packaging material
  • Organic output with minimal contamination
  • High dry solids content of the organic end product
  • No liquid necessary

Technical data

  • Power: 55 to 110 kW
  • R.p.m.: 500
  • Capacity: up to approx. 120 m³ per hour
  • Sieve mesh sizes: 8 to 50 mm
  • Dimensions: 3966x2430x1540 mm
  • Material: steel or stainless steel 304
  • Available with PLC and/or Scada control


The SMIMO120 was developed for separating large quantities of foodstuffs from its packaging with the organic part being cut/ground. The machine separates the organic content on one side of the machine from the remaining packaging.

With a capacity up to 35m3/hr and high separation efficiency, the special design allows for processing both mono as well as mixed flows.

A larger unit, the SMIMO160 is also available. Both machines are available in steel or stainless steel.

Applications

  • Packed and unpacked foodstuffs
  • Potatoes, fruit and vegetables
  • Environment and recycling
  • Oils and fats
  • Manure and digestate

Advantages

  • Suitable for packed and unpacked food waste
  • Grinding and unpacking in one machine possible
  • Less power consumption per m3 of product
  • Able to handle larger products
  • Dryer & cleaner packaging materials on discharge
  • Larger remains of packaging material
  • Organic output with minimal contamination
  • High dry solids content of the organic end product
  • No liquid necessary

Technical data

  • Power: 55 to 110 kW
  • R.p.m.: 500
  • Capacity: up to approx. 120 m³ per hour
  • Sieve mesh sizes: 8 to 50 mm
  • Dimensions: 3966x2430x1540 mm
  • Material: steel or stainless steel 304
  • Available with PLC and/or Scada control
