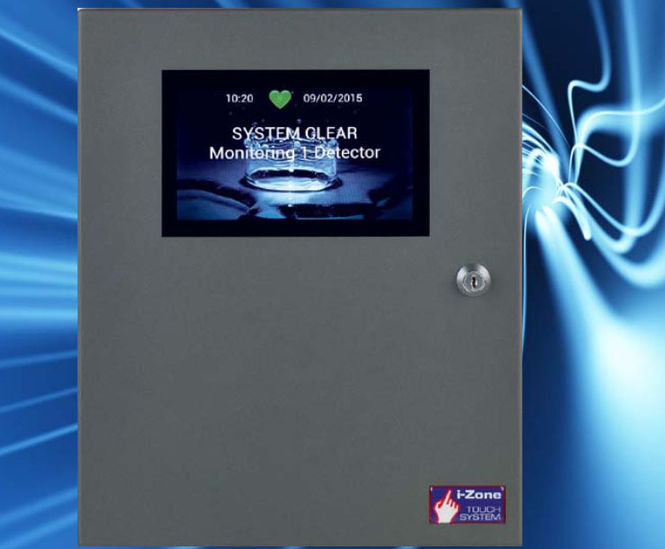

The iZ-T25 i-Zone touch screen control panel can simultaneously monitor all 25 Aqualarm detectors, including water, oils, chemicals, refrigerant gas leak detectors, and temperature and humidity detectors.

Two pulsed flowmeters for incoming mains water can also be monitored, with the facility to control a solenoid valve.

By connecting the control panel to a ZLM-500 zone-locating module, the display will show a meterage reading accurate to +/- 1m to the point where a water leak occurred along the cable.

Typical applications

  • Computer suites

  • IT / server rooms

  • Dealer floors

  • Data centres

  • Hotels

  • Kitchen / toilet and vending areas

  • Hospitals (MRI / plant rooms)

  • Leisure complexes

  • Supermarkets

  • Listed buildings

  • Museums and archive facilities

Key features

  • Can monitor up to 25 detectors / zones or ZLM-500 modules

  • Two flowmeter inputs

  • 5000 events memory

  • 7" full-colour LCD touchscreen

  • 3 user levels (two with PIN protection)

  • 97dB alarm at 1m

  • Configurable zone alarm functions

  • Lockable powder-coated mild steel cabinet

Operation

The detectors or zones can be monitored via the current addressable CAN network.

The control panel can store 500 events logs, which are protected by a non-volatile memory. The system is fitted with two sealed rechargeable lead acid batteries to support the system in a mains power down or during switchover periods. When power is reinstated, the system will automatically restart.

Construction

The i-Zone control panel is constructed from mild steel with a durable powder-coated finish. It is suitable for wall mounting.

Technical specification

Outputs
- MODBUS TCP/IP
- 5 programmable volt-free contacts
- 12V powered contacts to activate a sounder / beacon
- 12V and 24V powered auxiliary outputs
- One 24V at 8A (non-powered) relay to activate a flowmeter solenoid valve

Normal operating voltage
24V DC, internally supplied

Operating temperature
0-50ºC

Approvals
BS EN ISO 14001 and ISO 9001:1994
EMC Directive 89/336/EEC
CE Marked

Dimensions
375 (H) x 310 (W) x 95mm (D)
