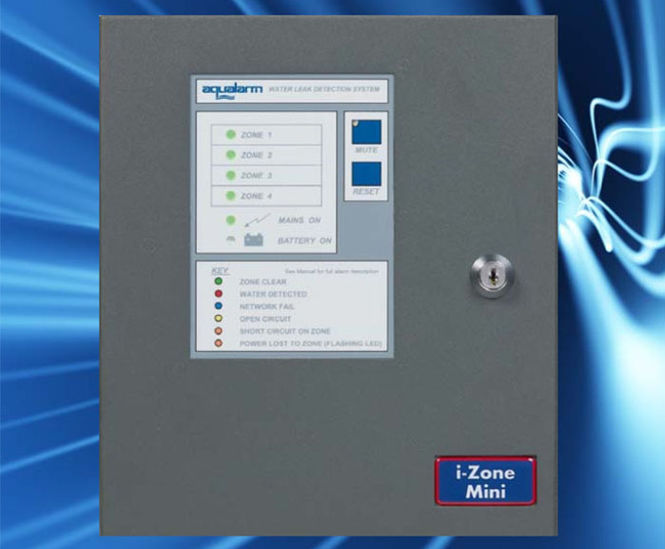

The i-Zone Mini control panel can monitor up to four zones for water leak detection using cable, point, float or overflow detectors. The status of each detector is displayed on an LED monitor.

Key features

  • Can monitor four detectors / zones

  • Up to 100m of network cable per zone

  • Full colour LED display

  • 70dB alarm audible at 1m

  • Lockable powder-coated mild steel cabinet

Operation

Each zone LED illuminates green if a detector is connected and clear of alarms. In an alarm condition, the LED will change colour to indicate the type of alarm being received, and a 70dB audible alarm will activate. Panel LED also indicates if the panel is running on mains or battery.

The system is fitted with one sealed rechargeable lead acid battery to support the system in a mains power down or switchover period. When power / mains are reinstated the system will automatically restart.

Construction

The i-Zone Mini control panel is constructed from mild steel with a durable powder-coated finish. It is suitable for wall mounting.

Technical specification

Outputs
- 12V (max 350mA rating) to activate a sounder / beacon sounder
- Common alarm volt-free contact
- Mains fail alarm volt-free contact
- Battery fail volt-free contact

Normal operating voltage
12V DC, internally supplied

Operating temperature
0 to 50ºC

Approvals
BS EN ISO 14001
ISO 9001:1994
EMC Directive 89/336/EEC
CE Marked

Dimensions
245 (H) x 210 (W) x 75mm (D)
