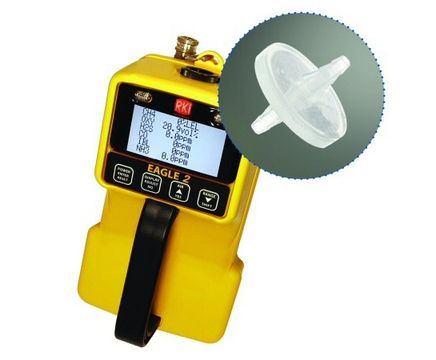

Gas analyser disc filters use a high performance media for high moisture retention whilst ensuring optimum flow rates. The filter also protects sensitive equipment from the ingress of particulates.

Helapet's replaceable gas analyser disc filters are ideal for filtering carbon dioxide, oxygen, nitrogen and other compounds, improving quality through particulate removal whilst maintaining optimum flow rates to sensors and pumps.

Key features

  • 25 and 50mm diameter
  • Strong particle retention due to natural hydrophobic PTFE micron rating
  • 1.0μm PTFE or 0.3μm HEPA available on request
  • Manufactured from Borealis polypropylene
  • Ensures safety of sensitive electronics whilst maximising flow rates
  • Tampo-printing technology allows incorporation of logos etc onto the filter housing for brand marketing opportunities
  • Tested to withstand up to 80 psi (5.44 bar)

Materials

  • 1.0 µm PTFE media or 0.3 µm HEPA available on request
  • Manufactured with Borealis polypropylene (FDA approved material, USP class 6)
  • Hose barb connectors accommodating 4-10mm tubing

Testing available on request

  • Bubble point tested
  • Clean pressure drop
  • Water-entry-pressure
  • Media integrity
  • Flow rate
  • Burst integrity testing
  • Pressure testing

Custom gas analyser filters can be made upon request.
