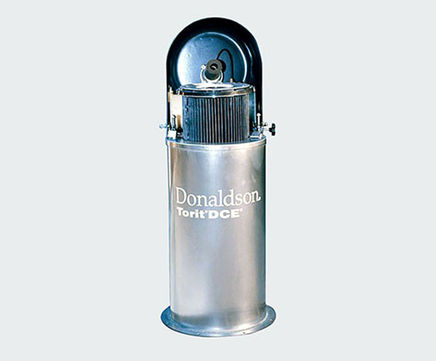

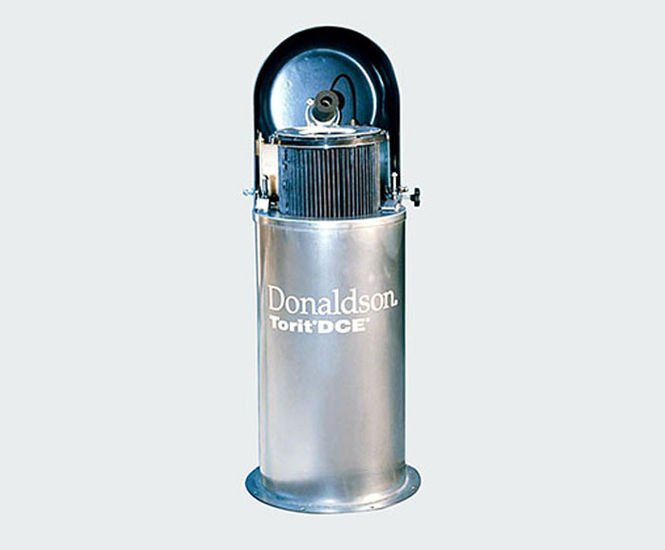

The Donaldson DCE 100 Air Venting Filter is a compact and flexible filtration device ideal for venting small volumes of dust-laden air on bins, hoppers and vessels on conveying and material handling systems. The DCE 100 is also available with a plastic liner option especially for the food industry. All filters have anti-static features to allow for all dust types, including explosive dusts.

Key features

  • Compact design with low height and small circular footprint
  • Durable with high quality stainless steel construction
  • Hinged top for easy cartridge removal
  • Proven cleaning performance
  • Better filtration efficiency than commodity bag filter
  • Ensures CoSHH compliance
  • ATEX compliance option

The DCE 100 series uses proven Ultra-Web® SB filter media as installed in venting applications worldwide. Combining Ultra-Web nanofibre technology with a sturdy spunbond polyester substrate, Ultra-Web SB provides higher efficiency, longer filter life and greater cost savings.

Sizes and air volumes

The range comprises two sizes at 2.5 m2 and 3.6m2 filtration area. It is available as a standard venting unit and as a fan-assisted version. The venting unit can handle air volumes from 200 - 400m3 per hour. The fan unit is rated up to 225m3 per hour @50mmWG.
