Analysing and recording various water quality parameters using the compact and modular solution from Bürkert Fluid Control Systems now has increased functionality thanks to new ‘cubes’ that add more test options.

The latest developments include new test cubes for Chlorine dioxide and iron as well as a hand-held cleaning and calibration module.

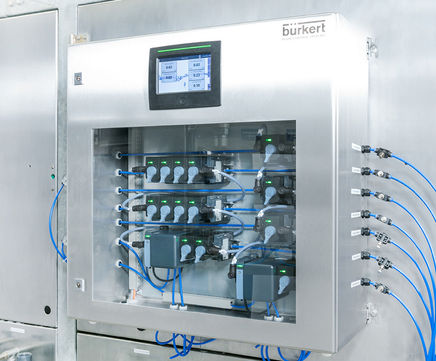

Furthermore, the ability to adapt the basic principle of the analysis system into a bespoke sampling station that can accommodate any number of sample streams will be of particular interest to larger water treatment facilities.

Flexible design

The original premise was to create a multi-channel, multi-function unit that could communicate using the majority of existing protocols and provide a precise record of water quality, based on the needs of the application. As such, the Type 8905 is already capable of measuring pH, reduction potential (ORP), conductivity, free chlorine and turbidity.

Each parameter is measured using a specific sensor cube that fits into the analysis machine. Each cube, irrespective of its capabilities, has the same dimensions and connections and can be plugged in, or removed, from the unit while it is operational, thus providing a hot swap facility.

The design of this product allows the customer to start with an initial set of parameters to be analysed that can be added to at any point, without affecting the existing system. When a new sensor cube is plugged into a free slot, it logs in with the system and makes its features available to all of the other modules that are present.

New features

Burkert has added two more sensor cubes: for Chlorine dioxide and iron.

The compact FIA colorimetric system houses three bottles above the iron measuring module - which include the iron colouring reagent, as well as calibration and cleaning fluids, all of which are automatically controlled by the base Type 8905. All three bottles feature barcode-locators to ensure correct replacement and weigh scales to monitor consumption as well as alerts in good time when topping up is required.

Bürkert has also developed an auto-cleaning process for the sensor cubes that uses a solution of clean, filtered water and mild citric acid, primarily to flush the turbidity sensor cube. The process can be set up on a timed basis by the customer to suit the needs of their application and can be used to clean any of the sensor cubes and other wetted parts. Once the cleaning procedure is complete, the fluid is sent to drain to avoid contamination of the main process.

To help customers maintain the accuracy of their water analysis equipment Bürkert has also designed a hand-held cleaning and calibration module that connects to the Type 8905. This enables operators to follow step-by-step maintenance instructions and procedures for using calibration fluids. All the while, the base unit is constantly monitoring the process and recording the necessary data.

The Type 8905 can communicate with existing control protocols and with personnel both on and off site, ensuring that any deviation from the water quality criteria is notified immediately. Furthermore, research with customers is ongoing into their future requirements and Burkert will continue to develop additional features and capabilities.


Analysing and recording various water quality parameters using the compact and modular solution from Bürkert Fluid Control Systems now has increased functionality thanks to new ‘cubes’ that add more test options.

The latest developments include new test cubes for Chlorine dioxide and iron as well as a hand-held cleaning and calibration module.

Furthermore, the ability to adapt the basic principle of the analysis system into a bespoke sampling station that can accommodate any number of sample streams will be of particular interest to larger water treatment facilities.

Flexible design

The original premise was to create a multi-channel, multi-function unit that could communicate using the majority of existing protocols and provide a precise record of water quality, based on the needs of the application. As such, the Type 8905 is already capable of measuring pH, reduction potential (ORP), conductivity, free chlorine and turbidity.

Each parameter is measured using a specific sensor cube that fits into the analysis machine. Each cube, irrespective of its capabilities, has the same dimensions and connections and can be plugged in, or removed, from the unit while it is operational, thus providing a hot swap facility.

The design of this product allows the customer to start with an initial set of parameters to be analysed that can be added to at any point, without affecting the existing system. When a new sensor cube is plugged into a free slot, it logs in with the system and makes its features available to all of the other modules that are present.

New features

Burkert has added two more sensor cubes: for Chlorine dioxide and iron.

The compact FIA colorimetric system houses three bottles above the iron measuring module - which include the iron colouring reagent, as well as calibration and cleaning fluids, all of which are automatically controlled by the base Type 8905. All three bottles feature barcode-locators to ensure correct replacement and weigh scales to monitor consumption as well as alerts in good time when topping up is required.

Bürkert has also developed an auto-cleaning process for the sensor cubes that uses a solution of clean, filtered water and mild citric acid, primarily to flush the turbidity sensor cube. The process can be set up on a timed basis by the customer to suit the needs of their application and can be used to clean any of the sensor cubes and other wetted parts. Once the cleaning procedure is complete, the fluid is sent to drain to avoid contamination of the main process.

To help customers maintain the accuracy of their water analysis equipment Bürkert has also designed a hand-held cleaning and calibration module that connects to the Type 8905. This enables operators to follow step-by-step maintenance instructions and procedures for using calibration fluids. All the while, the base unit is constantly monitoring the process and recording the necessary data.

The Type 8905 can communicate with existing control protocols and with personnel both on and off site, ensuring that any deviation from the water quality criteria is notified immediately. Furthermore, research with customers is ongoing into their future requirements and Burkert will continue to develop additional features and capabilities.
