Applications Silos
Tanks
Vessels
Features ATEX certified
Minimum weight 1000kg
Maximum weight 7500kg

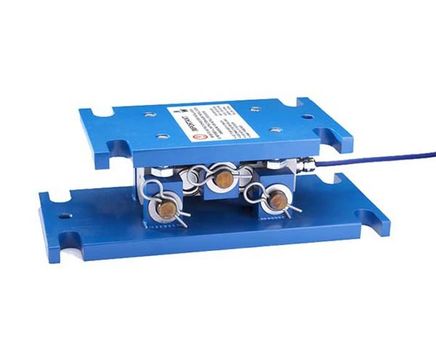

Baby Safemount® loading assemblies are designed for smaller silo, vessel and tank weighing applications.

Incorporates a fully welded stainless steel load cell.

Capacities from 1000-7500kg with ATEX option available for hazardous areas.

Features

  • Capacities: 1000, 2000, 3500, 5000, 7500kg
  • Plastic-coated mild steel or stainless steel loading assembly
  • Fully welded stainless steel load cell
  • Matched load cell output
  • Double-ended shear beam configuration
  • BS EN 1090-2:2018 Execution Class 2
  • 5-year limited warranty
  • Manufactured in the UK

Options

  • ATEX for Zone 1/21 and Zone 2/22 applications
  • ATEX Category 1 II 1GD
  • ATEX Category 1 II 3GD
  • Digital version with RS485 ASCII, Modbus, CAN AND CANopen outputs
  • High temperature up to 160°C
  • Industrial automation and weight controllers


Baby Safemount® loading assemblies are designed for smaller silo, vessel and tank weighing applications.

Incorporates a fully welded stainless steel load cell.

Capacities from 1000-7500kg with ATEX option available for hazardous areas.

Features

  • Capacities: 1000, 2000, 3500, 5000, 7500kg
  • Plastic-coated mild steel or stainless steel loading assembly
  • Fully welded stainless steel load cell
  • Matched load cell output
  • Double-ended shear beam configuration
  • BS EN 1090-2:2018 Execution Class 2
  • 5-year limited warranty
  • Manufactured in the UK

Options

  • ATEX for Zone 1/21 and Zone 2/22 applications
  • ATEX Category 1 II 1GD
  • ATEX Category 1 II 3GD
  • Digital version with RS485 ASCII, Modbus, CAN AND CANopen outputs
  • High temperature up to 160°C
  • Industrial automation and weight controllers
