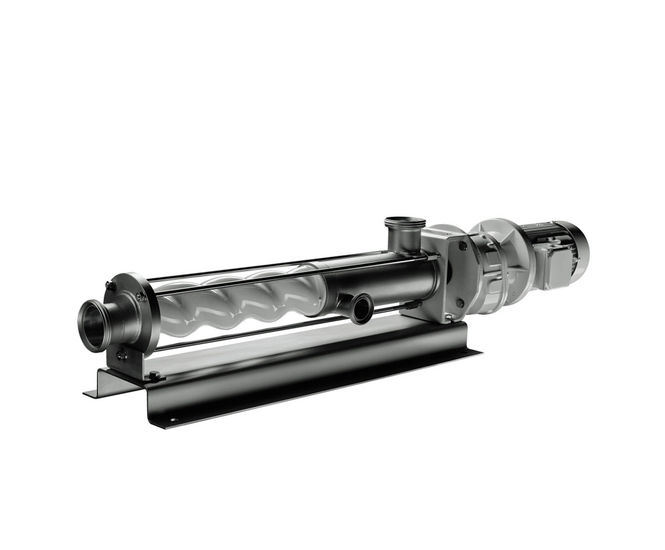

Pump type Progressing cavity pumps
Material Stainless steel (316)
Features Self priming
Max. flow 130 M3/hr
Max. pressure 24 bar



SEEPEX food pumps are used in the food, beverage, pharmaceutical, cosmetics, personal care and chemical industries or wherever a clean, sterile and hygienic atmosphere is needed. They comply with the most stringent hygiene regulations like FDA, 3-A Sanitary Standards and EHEDG and are also maintenance-friendly.

Key features

  • High product safety: stator material and secondary seals are FDA approved (Food and Drug Administration, USA)
  • CIP (Clean In Place) with high velocity flow in the suction casing
  • US 3-A Sanitary Standards and EHEDG compliance
  • Particularly easy to maintain due to easy-to-assemble joints along with the plug-in connection between the rotating unit and drive
  • No special tools needed for assembly/disassembly
  • Optimised, dead-space-free pump casing prevents product build-up
  • High-quality casing surfaces and the rotating internal parts ensure residue-free cleaning
  • Multiple mechanical seal options ensure hygienic shaft sealing
  • SIP (Sterilization In Place) with superheated steam

BCSO range

  • Highest hygienic standards along with corrosion and wear resistance
  • Conveying capacity: 30 l/h – 130 m³/h
  • Pressure: up to 24 bar (350 psi)
  • Open, aseptic joint ensures residue-free cleaning with CIP

BCSB range

  • For abrasive fluids
  • Conveying capacity: 30 l/h – 130 m³/h
  • Pressure: up to 24 bar (350 psi)
  • Proven, closed and cost-effective pin joint

BTCS range

  • For highly viscous products with low flowability
  • Conveying capacity: 30 l/h – 130 m³/h
  • Pressure: up to 24 bar (350 psi)
  • Open hopper pump with cylindrical/conical compression zone and auger feed screw

MDC and MDTC

  • Hygienic dosing pumps
  • Conveying capacity: 0.5 l/h – 500l/h
  • Pressure: up to 24 bar (350 psi)
  • open hopper design for viscous products


SEEPEX food pumps are used in the food, beverage, pharmaceutical, cosmetics, personal care and chemical industries or wherever a clean, sterile and hygienic atmosphere is needed. They comply with the most stringent hygiene regulations like FDA, 3-A Sanitary Standards and EHEDG and are also maintenance-friendly.

Key features

  • High product safety: stator material and secondary seals are FDA approved (Food and Drug Administration, USA)
  • CIP (Clean In Place) with high velocity flow in the suction casing
  • US 3-A Sanitary Standards and EHEDG compliance
  • Particularly easy to maintain due to easy-to-assemble joints along with the plug-in connection between the rotating unit and drive
  • No special tools needed for assembly/disassembly
  • Optimised, dead-space-free pump casing prevents product build-up
  • High-quality casing surfaces and the rotating internal parts ensure residue-free cleaning
  • Multiple mechanical seal options ensure hygienic shaft sealing
  • SIP (Sterilization In Place) with superheated steam

BCSO range

  • Highest hygienic standards along with corrosion and wear resistance
  • Conveying capacity: 30 l/h – 130 m³/h
  • Pressure: up to 24 bar (350 psi)
  • Open, aseptic joint ensures residue-free cleaning with CIP

BCSB range

  • For abrasive fluids
  • Conveying capacity: 30 l/h – 130 m³/h
  • Pressure: up to 24 bar (350 psi)
  • Proven, closed and cost-effective pin joint

BTCS range

  • For highly viscous products with low flowability
  • Conveying capacity: 30 l/h – 130 m³/h
  • Pressure: up to 24 bar (350 psi)
  • Open hopper pump with cylindrical/conical compression zone and auger feed screw

MDC and MDTC

  • Hygienic dosing pumps
  • Conveying capacity: 0.5 l/h – 500l/h
  • Pressure: up to 24 bar (350 psi)
  • open hopper design for viscous products
