SEEPEX UK




Suitability Sludge / slurry
Wastewater / sewage
Water
Pump type Progressing cavity pumps
Housing Cast iron
Stainless steel
Steel
Installation Dry installed
Max. flow 30 L/H - 500 M3/H
Max. pressure up to 96 bar / 1400 PSI

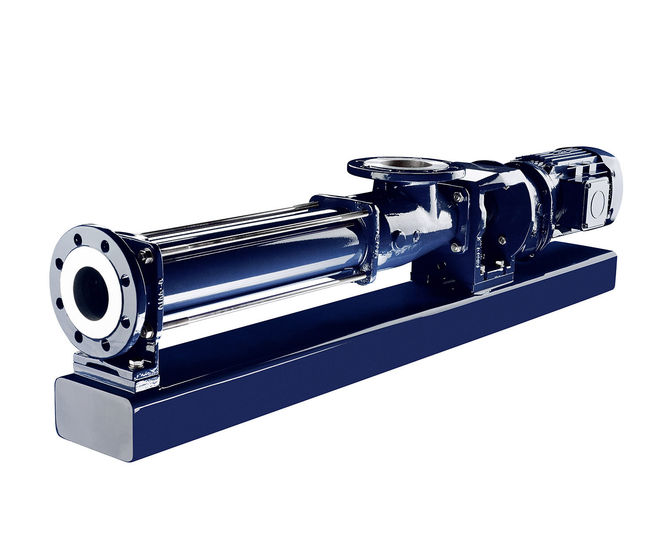

Product group N pumps form the basis of the modular concept that supports all SEEPEX progressive cavity pumps. They are ideal for applications in water and wastewater treatment.

They convey low to highly viscous media with or without solids.

BN pumps can also be supplied with Smart Stator Technology up to 8bar discharge pressure

Key features

  • Various rotor/stator geometries (conventional, 6L and Tricam geometry)
  • Low pulsation, uniform flow
  • High self-priming capabilities even with a mixture of liquid and air or gas up to a 9 meter water column
  • Numerous installation options
  • Large spherical entrance port
  • Reversible rotation and flow

BN Range

  • For low to highly viscous media with or without solids
  • Conveying capacity: 30 l/h - 500 m3/h
  • Pressure: up to 48 bar (700 PSI)

NS Range

  • For low to highly viscous media with or without solids
  • Conveying capacity: 30 l/h - 500 m3/h
  • Pressure: up to 96 bar (1400 PSI)
  • Universal drive configuration through a flexible coupling or V-belt

BNA Range

  • For low to highly viscous media with or without solids
  • Conveying capacity: 0.3-110 m3/h
  • Working pressure (MAWP): up to 24 bar (350 PSI)
  • Casing pressure (MACP): up to 50 bar (725 PSI)


Product group N pumps form the basis of the modular concept that supports all SEEPEX progressive cavity pumps. They are ideal for applications in water and wastewater treatment.

They convey low to highly viscous media with or without solids.

BN pumps can also be supplied with Smart Stator Technology up to 8bar discharge pressure

Key features

  • Various rotor/stator geometries (conventional, 6L and Tricam geometry)
  • Low pulsation, uniform flow
  • High self-priming capabilities even with a mixture of liquid and air or gas up to a 9 meter water column
  • Numerous installation options
  • Large spherical entrance port
  • Reversible rotation and flow

BN Range

  • For low to highly viscous media with or without solids
  • Conveying capacity: 30 l/h - 500 m3/h
  • Pressure: up to 48 bar (700 PSI)

NS Range

  • For low to highly viscous media with or without solids
  • Conveying capacity: 30 l/h - 500 m3/h
  • Pressure: up to 96 bar (1400 PSI)
  • Universal drive configuration through a flexible coupling or V-belt

BNA Range

  • For low to highly viscous media with or without solids
  • Conveying capacity: 0.3-110 m3/h
  • Working pressure (MAWP): up to 24 bar (350 PSI)
  • Casing pressure (MACP): up to 50 bar (725 PSI)
