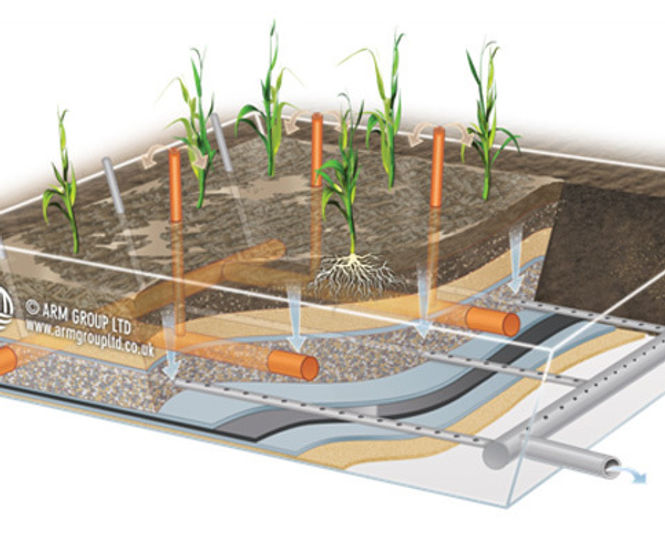

Sludge Treatment Reed Beds (STRBs) naturally treat sludge from sewage and drinking water. They work by using reeds planted in sludge-drying beds. Unlike traditional reed beds used for wastewater treatment, STRBs are designed mainly to hold sludge and let it dry out, forming a solid layer (or “sludge cake”).

Sludge is pumped into the reed bed basin through pipes and spread over previously laid sludge. The water drains away and evaporates, leaving the solids as sludge residue. The water moves through the sludge and the drainage layer below.

STRBs are like Vertical Flow (VF) reed beds in design. At the bottom, there’s a drainage layer made of different-sized materials. Above this layer is enough space to collect sludge for about 10 years.

This drying process can reduce the liquid sludge volume by up to 90%, with the filtration system removing nearly all the solid particles from the water that drains out. After 10 years, the dried sludge can build up to a height of 1.2 to 1.5 meters and will be about 30-40% solid.

The benefits of using a Sludge Treatment Reed Beds:

  • Enhanced Environmental Protection: Reduces the risk of environmental contamination by ensuring that sludge is treated properly before disposal or reuse.

  • Cost Savings: Lowers long-term costs through effective sludge management, which can reduce the need for expensive disposal methods. This sludge can then be used in other applications, such as in fertilizer.

  • Energy Efficiency: Often designed to use less energy compared to conventional methods, leading to lower operational costs and a smaller carbon footprint.

  • Compliance: Helps meet regulatory requirements and standards for sludge treatment and disposal, avoiding potential legal issues.

  • Sustainable Practices: Supports sustainable waste management practices by promoting the reuse and recycling of sludge materials.

  • Reduced Odour: Effective treatment can minimise unpleasant odours associated with sludge, improving the surrounding environment.

ARM Ltd delivers reliable, sustainable wastewater management with free outline proposals and a proven track record, utilising 35 years of knowledge and experience in reedbeds.
