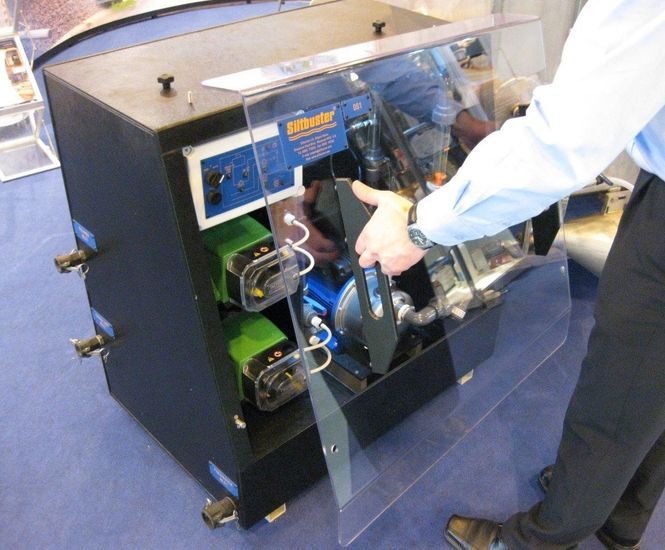

Comprises a space-efficient and splash-proof enclosure (housing) for the storage of dosing pumps and its associated ancillary equipment. Provided in a range of configurations from simple flow-proportional dosing to automated polymer batching systems. These compact neat skids are provided with a bunded chemical spill tray which can be easily forklifted into position on site to ensure HSE guidelines are followed.

Dosing skids are typically provided as part of a complete treatment system and are used to meter the required process chemicals into a pipe flocculator or mix tank proportional to the incoming flowrate before separation via a lamella settlement unit or DAF.

DImensions

  • Height: 1400mm

  • Width: 1220mm

  • Length: 600mm

Typical applications

  • Automated flocculant make-up

  • Controlled chemical dosing

  • pH correction
