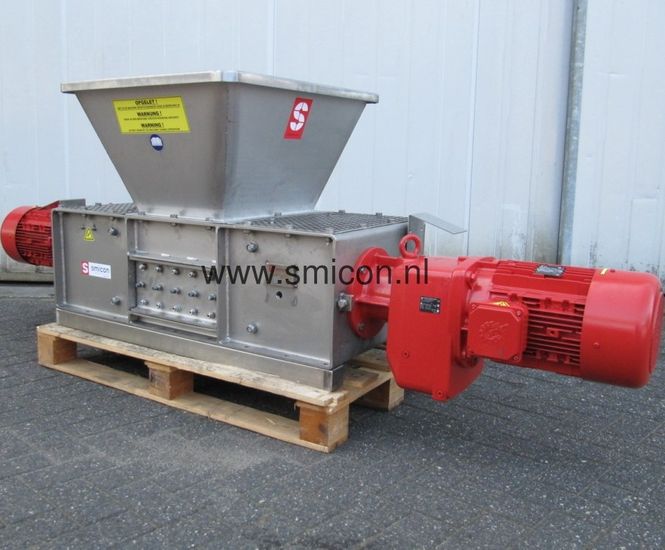

Smicon shredder for foodstuff and animal feed processing
SMIDE shredders / coarse cutters from Smicon are designed for preparing flows of foodstuffs and residual products such as potatoes, fruit and vegetables into smaller parts: SMIDE4; SMIDE5; SMIDE6; SMIDE8. makes organic products are easier to pump and to process; available in single- or double-shaft execution; modular design, so product size can be
SMIDE shredders / coarse cutters from Smicon are designed for preparing flows of foodstuffs and residual products such as potatoes, fruit and vegetables into smaller parts.
Models
SMIDE4
SMIDE5
SMIDE6
SMIDE8
Key features
Makes organic products are easier to pump and to process
Available in single- or double-shaft execution
Modular design, so product size can be set by adjusting the pack of blades
Applications
Frequently used applied in the animal feed and recycling industries. Used to prepare flows of organic matter so that these are suitable for processing in fermenting and composting installations.
Technical data
Power: 1x4kW to 2x18.5kW
RPM: 40 to 100
Capacity: approximagely 100m³ per hour
Inlet openings: 340x280mm to 676x460mm
Dimensions: 1421x370x270mm to 3164x780x350mm
Material: 304 grade stainless steel
Cutters: available with various blade types and blade sizes
