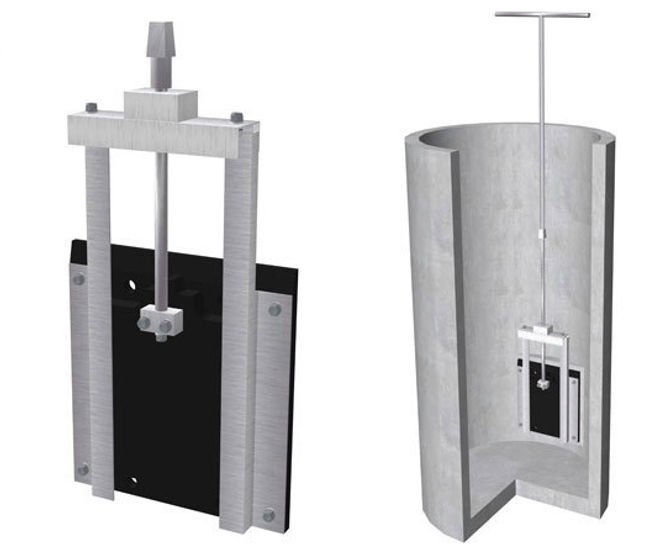

ASA manhole and hydrobrake penstock - 200mm
Designed for pipework up to 200mmm, the ASA Manhole & Flow Control Penstock is suitable for installation in manhole and flow control chambers: size: 200mm; fixing type: wall-mounted; materials: HDPE, stainless steel 316, EPDM, POM; working pressure: 5.0MwC on/off. Althon flow control penstocks are T-key operated with a non-rising spindle. Spindle
Designed for pipework up to 200mmm, the ASA Manhole & Flow Control Penstock is suitable for installation in manhole and flow control chambers.
Details
Size: 200mm
Fixing type: wall-mounted
Materials: HDPE, stainless steel 316, EPDM, POM
Working pressure: 5.0MwC on/off
Operation
Althon flow control penstocks are T-key operated with a non-rising spindle. Spindle extensions from the top of the penstock to the cover level are available.
Installation
Installation typically requires creating a flat surface within the manhole chamber for mounting the penstock. A smooth concrete surface will allow for a strong seal between the penstock and chamber wall. Every penstock comes complete with fixing bolts, chemical anchors, and an EPDM seal for secure installation.
