Media cooled Drilling fluids
Cooling medium Water
Availability For sale
For hire

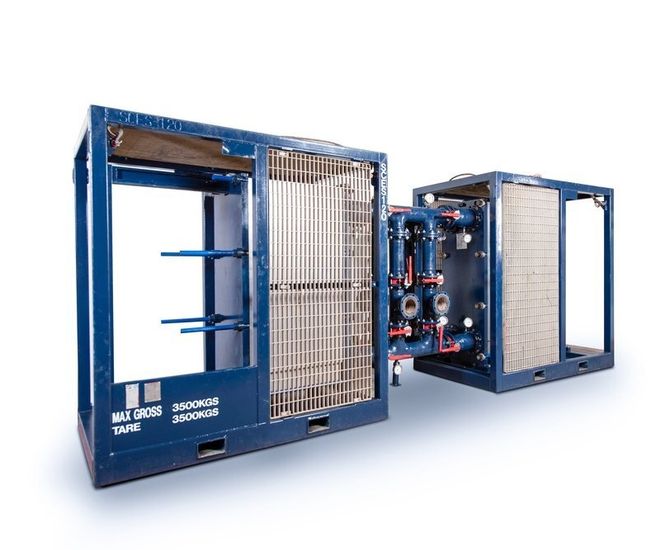

Mud Temperature Control Systems by OSSO are based on a simple robust design which requires little maintenance.

These modular mud cooling systems are skid-mounted. They can be connected and made operational in less than 24 hours.

The system incorporates one or two plate heat exchangers (PHE) designed in accordance with ASME codes and standards. It has a complete piping assembly with gauges and manually operated butterfly valves for drilling fluids and cooling water flow control. The heat exchangers can be operated in parallel or as individual units depending on duties required.

  • Modular mud cooling system
  • No moving parts, requiring minimal maintenance
  • Dual or single plate heat exchanger options
  • Skid mounted for simple connection
  • Can be ready for operation in less than 24 hours
  • Ideal for offshore and remote locations

Single module

Dimensions Mud Cooler Single Skid
Length 3,616 mm
Width 1,500 mm
Height 2,610 mm
Weight 3,750 Kg

Dimensions Filter Skid
Length 1,850 mm
Width 1,100 mm
Height 1,003 mm
Weight 1,200 Kg

Design
Design Pressure 8 bar
Design Temperature 130 °C
Heat Transfer Area 185 m2
Pressure Vessel Code PED 97/23/EC or ASME / API
Frame DNV 2.7-1 / 2.7-3

Materials
Piping Mild Steel Schedule 80
Support Frame Mild Steel
Frame Plates Mild Steel
Channel Plates Titanium

Connections
Cooling Water Outlet 6” or 4” Ansi 150LB
Cooling Water Inlet 6” or 4” Ansi 150LB
Drilling Fluid Inlet 6” Ansi 150LB
Drilling Fluid Outlet 6” Ansi 150LB

Utilities
Cooling Water Flow 200m3/hr Recommended Flow
Drilling Fluid Flow 200m3/hr Recommended Flow

Liquid Hold Up Volumes – Mud
Plate Heat Exchanger 366 Litres
Module Pipework Manifold 23 Litres
Filter Skid 86 litres
TOTAL VOLUME 475 Litres

Liquid Hold Up Volumes – Water
Plate Heat Exchanger 366 Litres
Pipework Manifold 23 Litres
TOTAL VOLUME 376 Litres



Dual module

Dimensions Mud Cooler Dual Skid
Length 6,250 mm
Width 1,500 mm
Height 2,610 mm
Weight 7,500 Kg

Dimensions Filter Skid
Length 1,850 mm
Width 1,100 mm
Height 1,003 mm
Weight 1,200 Kg

Design
Design Pressure 8 bar
Design Temperature 130 °C
Heat Transfer Area 370 m2
Pressure Vessel Code PED 97/23/EC or ASME / API
Frame DNV 2.7-1 / 2.7-3

Materials
Piping Mild Steel Schedule 80
Support Frame Mild Steel
Frame Plates Mild Steel
Channel Plates Titanium

Connections
Cooling Water Outlet 6” or 4” Ansi 150LB
Cooling Water Inlet 6” or 4” Ansi 150LB
Drilling Fluid Inlet 6” Ansi 150LB
Drilling Fluid Outlet 6” Ansi 150LB

Utilities
Cooling Water Flow 275m3/hr Recommended Flow
Drilling Fluid Flow 275m3/hr Recommended Flow

Liquid Hold Up Volumes – Mud
Plate Heat Exchangers 732 Litres
Module Pipework Manifold 46 Litres
Filter Skid 86 litres
TOTAL VOLUME 864 Litres

Liquid Hold Up Volumes – Water
Plate Heat Exchangers 732 Litres
Module Pipework Manifold 46 Litres
TOTAL VOLUME 778 Litres


Mud Temperature Control Systems by OSSO are based on a simple robust design which requires little maintenance.

These modular mud cooling systems are skid-mounted. They can be connected and made operational in less than 24 hours.

The system incorporates one or two plate heat exchangers (PHE) designed in accordance with ASME codes and standards. It has a complete piping assembly with gauges and manually operated butterfly valves for drilling fluids and cooling water flow control. The heat exchangers can be operated in parallel or as individual units depending on duties required.

  • Modular mud cooling system
  • No moving parts, requiring minimal maintenance
  • Dual or single plate heat exchanger options
  • Skid mounted for simple connection
  • Can be ready for operation in less than 24 hours
  • Ideal for offshore and remote locations

Single module

Dimensions Mud Cooler Single Skid
Length 3,616 mm
Width 1,500 mm
Height 2,610 mm
Weight 3,750 Kg

Dimensions Filter Skid
Length 1,850 mm
Width 1,100 mm
Height 1,003 mm
Weight 1,200 Kg

Design
Design Pressure 8 bar
Design Temperature 130 °C
Heat Transfer Area 185 m2
Pressure Vessel Code PED 97/23/EC or ASME / API
Frame DNV 2.7-1 / 2.7-3

Materials
Piping Mild Steel Schedule 80
Support Frame Mild Steel
Frame Plates Mild Steel
Channel Plates Titanium

Connections
Cooling Water Outlet 6” or 4” Ansi 150LB
Cooling Water Inlet 6” or 4” Ansi 150LB
Drilling Fluid Inlet 6” Ansi 150LB
Drilling Fluid Outlet 6” Ansi 150LB

Utilities
Cooling Water Flow 200m3/hr Recommended Flow
Drilling Fluid Flow 200m3/hr Recommended Flow

Liquid Hold Up Volumes – Mud
Plate Heat Exchanger 366 Litres
Module Pipework Manifold 23 Litres
Filter Skid 86 litres
TOTAL VOLUME 475 Litres

Liquid Hold Up Volumes – Water
Plate Heat Exchanger 366 Litres
Pipework Manifold 23 Litres
TOTAL VOLUME 376 Litres



Dual module

Dimensions Mud Cooler Dual Skid
Length 6,250 mm
Width 1,500 mm
Height 2,610 mm
Weight 7,500 Kg

Dimensions Filter Skid
Length 1,850 mm
Width 1,100 mm
Height 1,003 mm
Weight 1,200 Kg

Design
Design Pressure 8 bar
Design Temperature 130 °C
Heat Transfer Area 370 m2
Pressure Vessel Code PED 97/23/EC or ASME / API
Frame DNV 2.7-1 / 2.7-3

Materials
Piping Mild Steel Schedule 80
Support Frame Mild Steel
Frame Plates Mild Steel
Channel Plates Titanium

Connections
Cooling Water Outlet 6” or 4” Ansi 150LB
Cooling Water Inlet 6” or 4” Ansi 150LB
Drilling Fluid Inlet 6” Ansi 150LB
Drilling Fluid Outlet 6” Ansi 150LB

Utilities
Cooling Water Flow 275m3/hr Recommended Flow
Drilling Fluid Flow 275m3/hr Recommended Flow

Liquid Hold Up Volumes – Mud
Plate Heat Exchangers 732 Litres
Module Pipework Manifold 46 Litres
Filter Skid 86 litres
TOTAL VOLUME 864 Litres

Liquid Hold Up Volumes – Water
Plate Heat Exchangers 732 Litres
Module Pipework Manifold 46 Litres
TOTAL VOLUME 778 Litres
