Product name USM open channel flow meter
Media Industrial effluents
Wastewater / effluent
Suitability Open channels
Flowmeter type Ultrasonic flowmeters
Accuracy (±%) 0.1

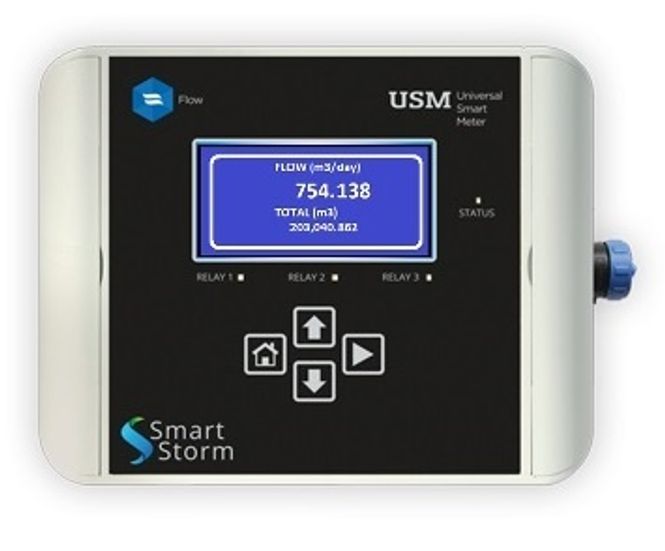

Wall-mounted USM flowmeter for measuring flow in open channels using a Smart Storm Digison3 ultrasonic sensor. Can be programmed to measure in a wide range of weirs and flumes as well as non-standard channels.

With a 3″ vibrant LCD graphics display and a 4-button interface, programming is extremely simple and user-friendly in both metric and imperial units. The USM-OCF comes complete with a 20-year internet datalogger, 4-20mA output, RS485 Modbus communications port and 3 fully programmable relays.

Features

  • Low-cost open channel flow meter
  • Quick and simple user-friendly programming
  • Integral 20-year datalogger
  • PC-based reporting software
  • IP 66/4X wall-mounted weatherproof enclosure
  • 6 programmable relays
  • 4-20mA inputs and outputs

Applications

  • Trade effluent monitoring
  • Waste water monitoring
  • Irrigation channels
  • Stormwater wonitoring
  • Flow surveys


Wall-mounted USM flowmeter for measuring flow in open channels using a Smart Storm Digison3 ultrasonic sensor. Can be programmed to measure in a wide range of weirs and flumes as well as non-standard channels.

With a 3″ vibrant LCD graphics display and a 4-button interface, programming is extremely simple and user-friendly in both metric and imperial units. The USM-OCF comes complete with a 20-year internet datalogger, 4-20mA output, RS485 Modbus communications port and 3 fully programmable relays.

Features

  • Low-cost open channel flow meter
  • Quick and simple user-friendly programming
  • Integral 20-year datalogger
  • PC-based reporting software
  • IP 66/4X wall-mounted weatherproof enclosure
  • 6 programmable relays
  • 4-20mA inputs and outputs

Applications

  • Trade effluent monitoring
  • Waste water monitoring
  • Irrigation channels
  • Stormwater wonitoring
  • Flow surveys
