Product name USM area velocity flow meter
Media Industrial effluents
Wastewater / effluent
Suitability Open channels
Pipes
Accuracy (±%) 0.2

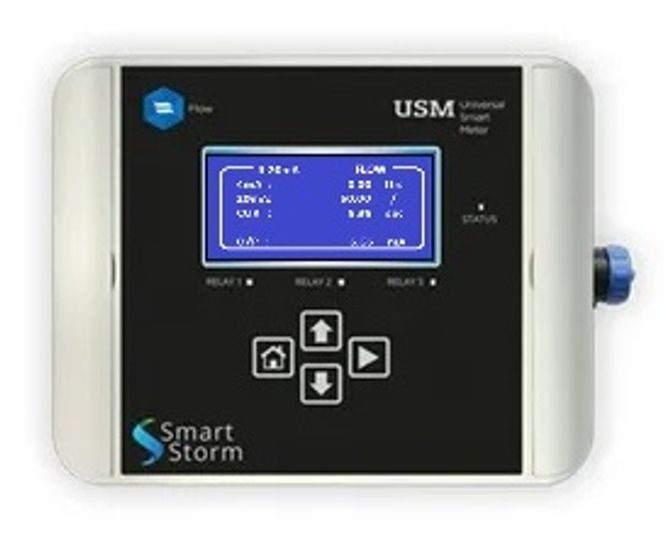

Wall-mounted USM AV flowmeter for measuring flow in open channels, surcharged pipes and partially full sewer pipes without the need for a flume or weir. Ideal for fast and simple measurement of municipal storm water, sewer flow, waste water flow and irrigation flow.

The area velocity principle uses a submersible sensor fixed to the bottom of a pipe or channel that measures flow velocity and depth. By entering the channel dimensions the volumetric flow in the channel or pipe is computed and instantaneous flow and totalised volume is displayed.

With a 3” vibrant LCD graphics display and a 4-button interface, programming is extremely simple and user-friendly in both metric and imperial units. The USM-AVF comes complete with a 20-year internal datalogger, 4-20mA output, RS485 Modbus communications port and 3 fully programmable relays.

Features

  • Low-cost area velocity flow meter
  • Quick and simple user-friendly programming
  • Integral 20-year datalogger as standard
  • PC-based reporting software
  • IP 66/4X wall-mounted weatherproof enclosure
  • 3 programmable relays
  • 4-20mA output

Applications

  • Sewer flow monitoring and data logging
  • Irrigation channels
  • Waste water monitoring
  • Stormwater
  • Open channel water monitoring
  • Flow surveys


Wall-mounted USM AV flowmeter for measuring flow in open channels, surcharged pipes and partially full sewer pipes without the need for a flume or weir. Ideal for fast and simple measurement of municipal storm water, sewer flow, waste water flow and irrigation flow.

The area velocity principle uses a submersible sensor fixed to the bottom of a pipe or channel that measures flow velocity and depth. By entering the channel dimensions the volumetric flow in the channel or pipe is computed and instantaneous flow and totalised volume is displayed.

With a 3” vibrant LCD graphics display and a 4-button interface, programming is extremely simple and user-friendly in both metric and imperial units. The USM-AVF comes complete with a 20-year internal datalogger, 4-20mA output, RS485 Modbus communications port and 3 fully programmable relays.

Features

  • Low-cost area velocity flow meter
  • Quick and simple user-friendly programming
  • Integral 20-year datalogger as standard
  • PC-based reporting software
  • IP 66/4X wall-mounted weatherproof enclosure
  • 3 programmable relays
  • 4-20mA output

Applications

  • Sewer flow monitoring and data logging
  • Irrigation channels
  • Waste water monitoring
  • Stormwater
  • Open channel water monitoring
  • Flow surveys





Downloads
  • USM universal smart meter
    USM universal smart meter
    4pp 2.84MB
    Download
  • USM area velocity flow meter - instructions
    USM area velocity flow meter - instructions
    34pp 2.27MB
    Download
  • USM area velocity flow meter - specifications
    USM area velocity flow meter - specifications
    1pp 200.83KB
    Download
