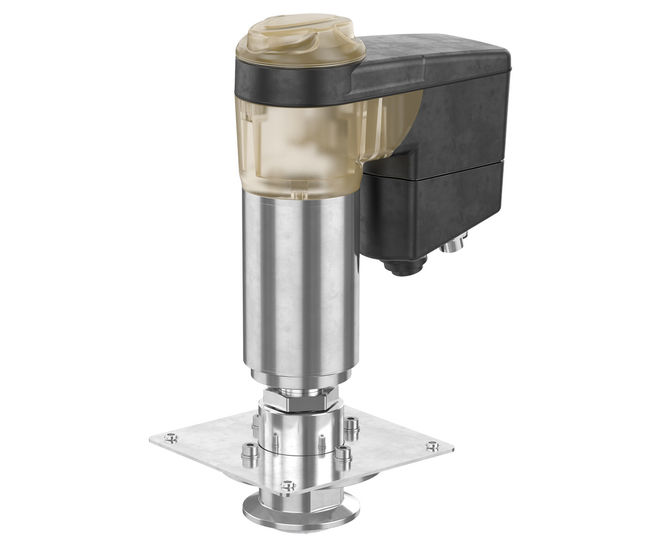

The GEMÜ SU60 SUMONDO is a single-use diaphragm valve designed for use in pharmaceutical, biotechnology and medical applications. The valve features an internally welded diaphragm and hermetic sealing between the valve body and the actuator. For installation, the single-use diaphragm valve body is secured on the pneumatic stainless steel actuator or on the manual actuator and is locked using locking pins. After use, the single-use diaphragm valve body can be removed from the actuator along with the diaphragm and disposed of. The actuators can be used multiple times.

Key features

  • Impact- and corrosion-resistant
  • Integral optical position indicator
  • Wide range of adaptation options for add-on components and accessories
  • Tried-and-tested, reliable actuator design (remains in system)
  • Hermetic separation between medium and actuator
  • Autoclavable actuator

Applications

The GEMÜ SU60 SUMONDO is designed for use in pharmaceutical, biotechnology, cosmetics and medical environments. Typical applications include:

  • Media mixing
  • Fermentation
  • Cell harvesting
  • Purification
  • Filtration
  • Filling

Technical specifications

  • Connection: clamp; hose barb
  • Actuator: pneumatic
  • Actuator movement: linear actuator
  • Body material: PP-R, natural
  • Conformities: EAC; USP
  • Max. operating pressure: 4.9 bar
  • Max. media temperature: 40°C
  • Min. media temperature: 5°C
  • Nominal sizes: DN 8 (1/4''); DN 10 (3/8''); DN 15 (1/2''); DN 20 (3/4''); DN 25 (1'')
  • Control valve
