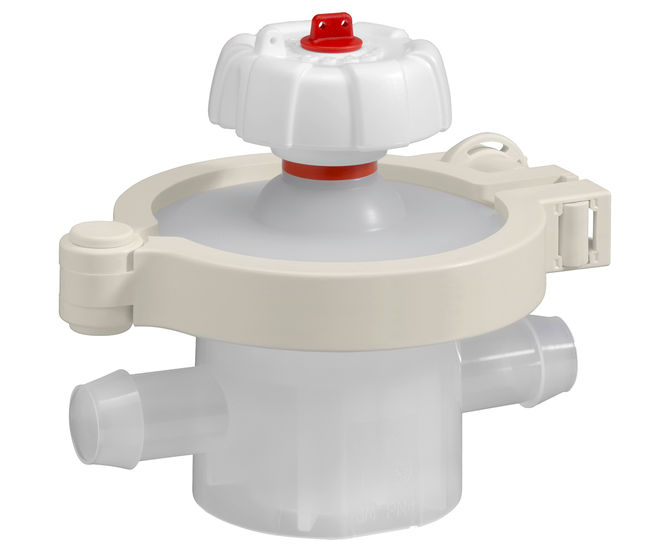

The GEMÜ SUHK SUMONDO is a manually-operated, single-use diaphragm valve designed for use in pharmaceutical, medical and biological applications. It features a mechanically stable, gamma-sterilizable plastic valve body and hermetic sealing between the valve body and the actuator. For installation, the single-use diaphragm valve body is secured on the pneumatic stainless steel actuator or on the manual actuator and is locked using locking pins. After use, the single-use diaphragm valve body can be removed from the actuator along with the diaphragm and disposed of. The actuators can be used multiple times.

Applications

The GEMÜ SUPM SUMONDO is designed for use in pharmaceutical, biotechnology, cosmetics and medical environments. Typical applications include:

  • Media mixing
  • Fermentation
  • Cell harvesting
  • Purification
  • Filtration
  • Filling

Key features

  • Tried-and-tested, reliable actuator design (remains in system)
  • Hermetic separation between medium and actuator
  • Impact resistant, corrosion resistant
  • Continuous minimum flow regulation thanks to closing stroke limiter
  • Integral optical position indicator
  • Autoclavable actuator

Technical specifications

  • Connection: Clamp; Hose barb
  • Actuator: Manual
  • Body material: PP-R, natural
  • Conformities: EAC; USP
  • Max. operating pressure: 4.9 bar
  • Max. media temperature: 40°C
  • Min. media temperature: 5°C
  • Nominal sizes: DN 8 (1/4''); DN 10 (3/8''); DN 15 (1/2''); DN 20 (3/4''); DN 25 (1'')
