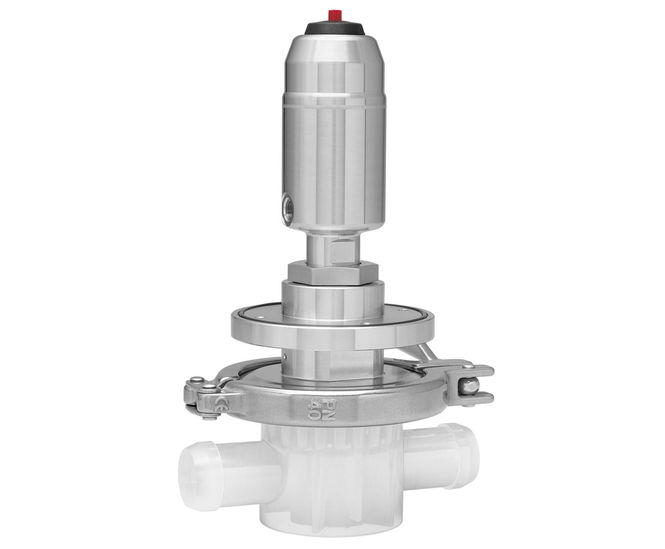

The GEMÜ SU40 SUMONDO is a single-use diaphragm valve designed for use in pharmaceutical, biological and medical applications. It features a mechanically stable, gamma-sterilizable plastic body and hermetic sealing through an internally welded diaphragm. For installation, the single-use diaphragm valve body is secured on the pneumatic stainless steel actuator or on the manual operator and is locked using locking pins. After use, the single-use diaphragm valve body can be removed from the actuator along with the diaphragm and disposed of. The actuators can be used multiple times.

Applications

The GEMÜ SU40 SUMONDO is designed for use in pharmaceutical, biotechnology, cosmetics and medical environments. Typical applications include:

  • Media mixing
  • Fermentation
  • Cell harvesting
  • Purification
  • Filtration
  • Filling

Key features

  • Impact resistant, corrosion resistant
  • Mechanically stable and gamma-sterilizable body material
  • Certificate of Conformity for purity, safety and physical and chemical tests
  • Validation Guide on request
  • The valve body meets the purity requirements of the pharmaceutical industry (USP 85, 788, 790)
  • Manufactured in ISO class 8 cleanroom

Technical specifications

  • Connection: Clamp; Hose barb
  • Seal material
  • Body material: PP-R, natural
  • Conformities: EAC; USP
  • Max. operating pressure: 4.9 bar
  • Max. media temperature: 40°C
  • Min. media temperature: 5°C
  • Nominal sizes: DN 8 (1/4''); DN 10 (3/8''); DN 15 (1/2''); DN 20 (3/4''); DN 25 (1'')
