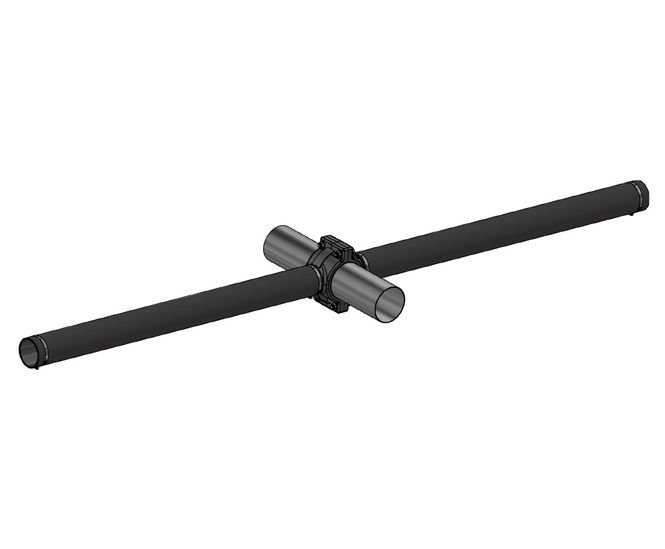

90mm-diameter fine bubble tube diffuser designed for use in deep aeration tanks (> 5-6m). Available in lengths up to 1150mm. Designed for durability, it has precise slits for high oxygen input and low headlosses.

Specifications

  • Unit flow: 1-12 Nm3/h

  • Nominal flow: 8-10 Nm3/h

  • Diaphragm dia: 90mm

  • Length: 1.05m

  • Area: 0.297m2

  • Bubble size: 1-3mm

  • Weight: 2kg
