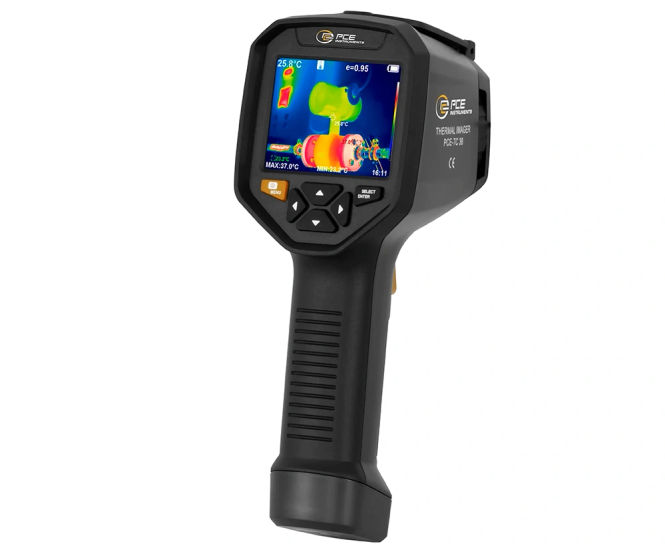

Digital Thermometer PCE-TC 38 is a handheld infrared thermometer for measuring temperatures from -20 °C to 550 °C, displaying thermal images on a 3.5-inch colour screen with 384 x 288 pixel resolution. Key features include WiFi connectivity for remote control, internal memory for 40,000 images, and five selectable colour palettes.

  • Handheld infrared thermometer with thermal imaging and colour display
  • Temperature range: -20 °C to 550 °C
  • WiFi remote access and image transfer to smartphones
  • Internal 6 GB memory stores up to 40,000 JPG images
  • Five colour palettes for thermal image analysis
  • Adjustable emissivity from 0.01 to 1.0 for accurate readings
  • Automatic power-off with selectable timing

Applications

  • Detecting heat loss in buildings
  • Identifying leaks in water and heating systems
  • Checking mechanical components like motors and bearings
  • Monitoring heat pumps and belts
  • General temperature monitoring in professional and private settings

Dimensions

Length 245 mm

Width 97 mm

Height 110 mm

Weight 634 g

Capacity 5000 mAh

Performance

Thermal sensitivity 0.06 °C

Display resolution 640 x 480 pixels

Measuring rate 25 Hz

Protection class IP20

Installation

Supplied with micro USB cable, mains adaptor, and carrying case

Technical support

User manual included
