The GEMÜ 567 BioStar is a stainless steel diaphragm globe control value designed for precision flow and dosing in aseptic applications, including biotechnology, food, beverage and pharmaceuticals industries.

Aseptic diaphragm valves are frequently used to control sterile applications. However, diaphragm valves soon reach their limits when a fine batch is required. Although globe valves with flow restrictors offer precise control, they are not aseptic. The GEMÜ 567 BioStar allows small volume to be regulated extremely accurately under aseptic conditions from 80 l/h to 12,500 l/h. Using innovative sealing via GEMÜ PD (Plug Diaphragm) made from an FDA-compliant PTFE diaphragm guarantees a hermetic separation of fluid from the actuator, whilst simultaneously achieving excellent valve control characteristics.

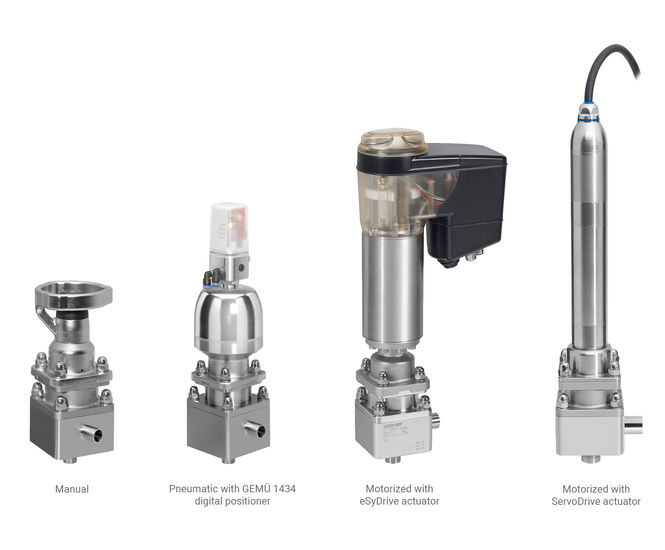

Available with manual, pneumatic and motorized actuators, the GEMÜ 567 BioStar is CIP/SIP capable and can also be integrated into GEMÜ stainless steel multi-port valve blocks.

Key features

  • Proven, reliable actuator design (manual, pneumatic or motorised)
  • Hermetic separation of the actuator from the medium flow using a PTFE sealing diaphragm
  • Easy to clean
  • Precise volume control
  • 3A version available

Applications

  • Control of sterile steam and air
  • Feed and discharge control in bioreactors
  • Dosing of liquids and gases in the food and beverage industries

Industries

  • Applications
  • Pharmaceuticals
  • Biotechnology
  • Cosmetics
  • Foodstuffs
  • Beverages

Technical specifications

  • Nominal sizes*: DN 8 to 25
  • Connections: butt weld spigots, clamps, other connections available on request
  • Body materials: stainless steel 1.4435 (block material), other materials on request
  • Surface finish: standard valve body Ra 0.4 μm
  • Seal materials: 1.4435 with FKM / PTFE or pure PTFE seal
  • Operating temperature*: -10 to 160 °C
  • Operating pressure*: 0 to 10 bar
  • Approvals: FDA, USP Class VI, (EC) Directive No. 1935/2004, ATEX on request

* depending on version and/or operating parameters
