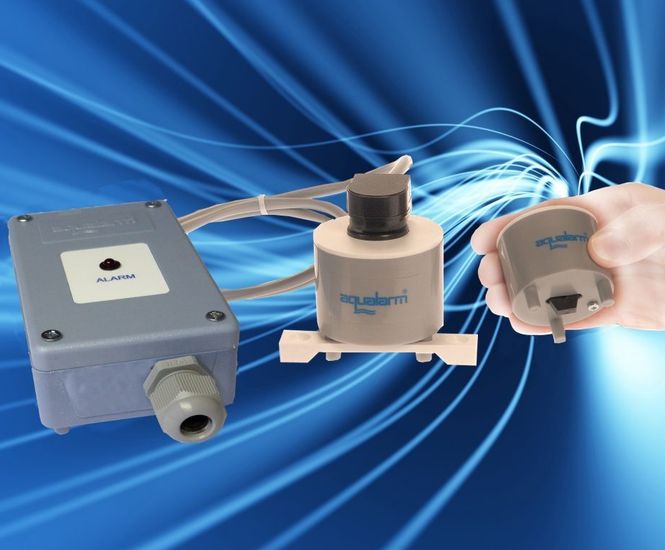

The Aqualarm IRDi-485 point-of-use oil detector comprises two components: the detector module and the point-of-use detector, connected via a 1m jumper cable. Both are manufactured from STAREX General ABS (SD-0150) plastic. The detector module houses the electronic circuitry; the point-of-use detector houses the infrared transmitter / receiver, which extends from the bottom of the detector.

A reflective area (50mm diameter) must be painted on the floor with paint capable of reflecting light (eg standard white gloss paint).

The jumper cable is connected to the top of the point-of-use detector via a 3-pin plug and socket.

A red LED will glow to indicate an alarm condition. Alarm status and monitoring is via a single RS485 link to an i-Zone Mini control panel.

A stabilising bar, or PC-3 protection cover, is required, as a means of fixing the point-of-use detector to the floor surface.

Key features

  • For use within plant rooms and other solid floor areas

  • For detection of oil and other non-conductive liquids

  • Manufactured from rustproof, hardwearing ABS plastic

  • 2-component design – keeping head and electronic module separate

  • LED and internal alarm sounder in module to give local alarm indication

  • Multiple types of protection covers are available to prevent mechanical damage

  • For connection to an i-Zone Mini control panel

Specifications

  • Normal operating voltage: 12 volts DC

  • Quiescent current: <10mA per detector

  • Alarm current: <100mA per detector

  • Detector oscillator frequency: 6kHz

  • Infrared probe type: Gallium arsenide

  • Recommended interconnecting cable: 4 core cable 22AWG / screened twisted pair / Belden Ref 8723

  • Line-out voltage drop: 1.5mV/m

  • Approvals: BS EN ISO 9001:1994 / EMC Directive 89/336/EEC

Dimensions

Module
Height: 45mm
Width: 70mm
Length: 135mm

Detector
Height: 65mm
Width: 55mm
