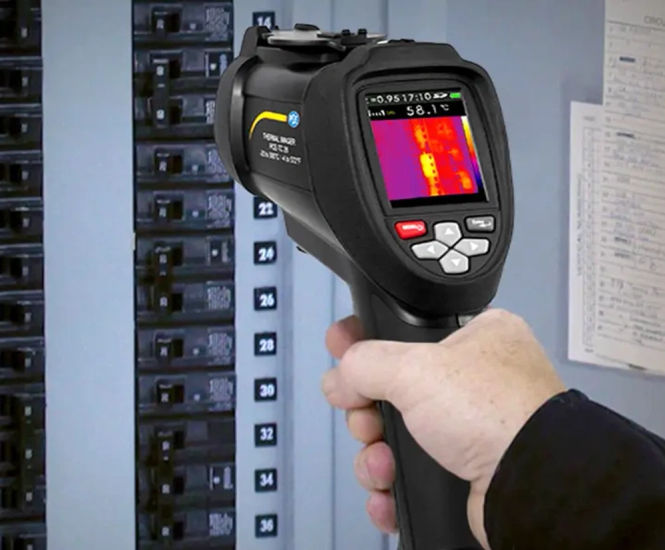

Thermography Camera PCE-TC 28 is an infrared camera for non-contact temperature measurement, with adjustable emissivity, built-in digital camera, SD card memory, and a temperature range of -20 to +600°C. Designed for easy hotspot detection and image storage.

  • Infrared camera for non-contact temperature measurement and image capture
  • Adjustable emissivity for accurate readings on various surfaces
  • Built-in digital camera for combined visual and thermal images
  • Stores up to 6000 images per GB on MicroSD card
  • Auto power-off and fast sampling time
  • Exchangeable Li-ion battery and TFT display with backlight
  • Includes USB data cable, mini tripod, mains adapter, and carrying case

Applications

Monitoring machinery

Building inspection

Hobby and leisure projects

Hotspot detection

General temperature monitoring

Dimensions

Display diagonal 2.2 in (320 x 240 TFT LCD)

Performance

Temperature range -20 to +600°C

Accuracy ±2%, ±2°C

Thermal sensitivity =150 mK

Image frequency 9 Hz

Field of view 33 x 33°

Camera resolution 32 x 31 pixels

Operating temperature 0 to 50°C

Storage temperature -20 to 60°C

Relative humidity 10–90%, non-condensing

Options and variations

ISO Calibration Certificate for Thermal Camera

Warranty

Not stated
