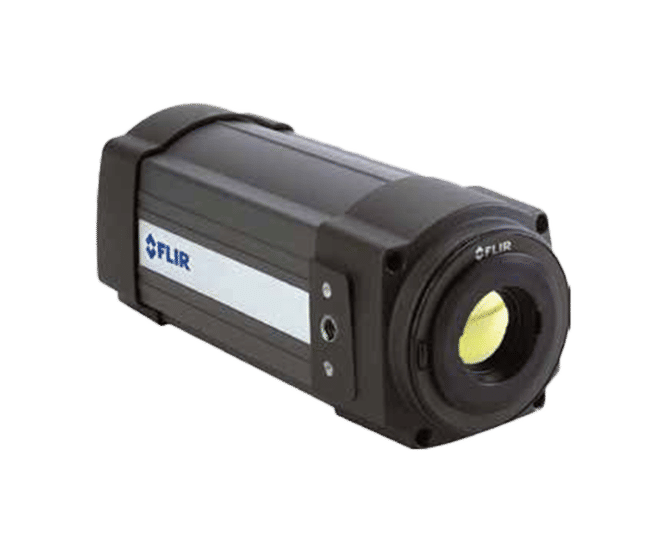

FLIR A325sc is equipped with an uncooled Vanadium Oxide (VoX) microbolometer detector that produces thermal images of 320 x 240 pixels. These pixels generate crisp and clear detailed images that are easy to interpret with high accuracy. The FLIR A325sc will make temperature differences as small as 50mK clearly visible.

  • Thermal imaging camera for real-time analysis

  • Uncooled microbolometer: 320 x 240 pixels

  • Gigabit ethernet interface

  • Close-up and telephoto lenses available

  • ResearchIR max software included

  • Matlab compatible

Key features and benefits

Fast data transfer

FLIR A325sc comes with a RJ-45 Gigabit Ethernet connection which supplies 14-bit 320 × 240 images at rates as high as 60 Hz.

GigE Vision™ standard compatability

GigE Vision allows fast image transfer using low cost standard cables up to 100 meters. With GigE Vision, hardware and software from different vendors can integrate seamlessly over gigabit ethernet connections.

GenICam™ protocol support

GenICam creates a common application programming interface (API) for cameras regardless of the interface technology or features implemented. Because the API for GenICam cameras will always be the same, cameras like the A325sc can be easily integrated into third party software.

Software

FLIR A325sc camera works seamlessly with FLIR ResearchIR Max software enabling intuitive viewing, recording and advanced processing of the thermal data provided by the camera. A Software Developers Kit (SDK) is optionally available.

MathWorks® Matlab

Control and capture data directly into MathWorks® Matlab software for advanced image analysis and processing.
