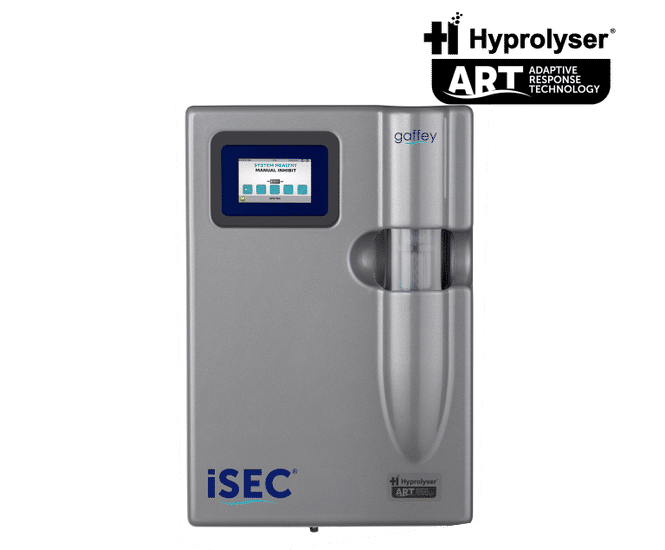

The Hyprolyser^® iSEC^® Modular range is ideal for smaller scale chlorine demands, generating sodium hypochlorite at rates of 3,6,30, 60 and 90 g/h.
Modular systems provide full flexible installation where client own choice of softener, salt saturator and chlorine product storage tank are to be supplied.

With precise brine and water proportioning and automatic regulation of the electrolyser DC current to optimise energy use, iSEC^® can maintain a highly consistent chlorine concentration in the generated product (av. 6g/l) to provide ultimate sustainability.

Features:

Unique state-of-the-ART Adaptive Response Technology built in, allowing the system to? adjust to changes in environmental or site conditions, delivering precise and consistent chlorine generation
HMI Touchscreen display with real time event?log and remote mimic monitoring available using Modbus TPC/RTU and other options
Fully GB/EU BPR compliant
Hydrogen sensor for shutdown of system if?any hydrogen is detected in the vicinity of ?the equipment
Volumetric water/brine measurement for ?efficient electrolysis
Electrolyser housed in a clear PVC tubular casing with a 5-year limited warranty
Durable plastic lockable protective ?equipment cover
Vivid LED illumination with operation status green/amber/red colour change.
Accessory kit included containing PVDF tank level switches, brine suction, saturator brine well and fill valve
External product tanks and saturators can be connected to suit any application

Specifications

Capacity (kg/day Cl2)	Up to 2.2
Capacity (lbs/day Cl2)	Up to 4.8
Concentration (g/L Cl2)	6 ±1
Power Supply (V~)	110-230

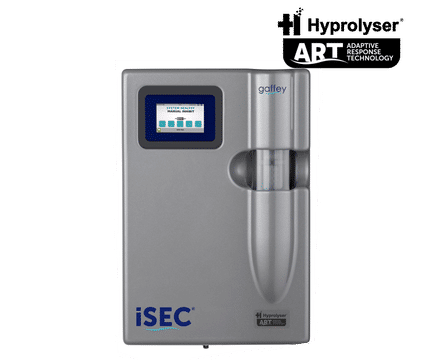

Hyprolyser® iSEC®-2 Modular electrochlorination systems
