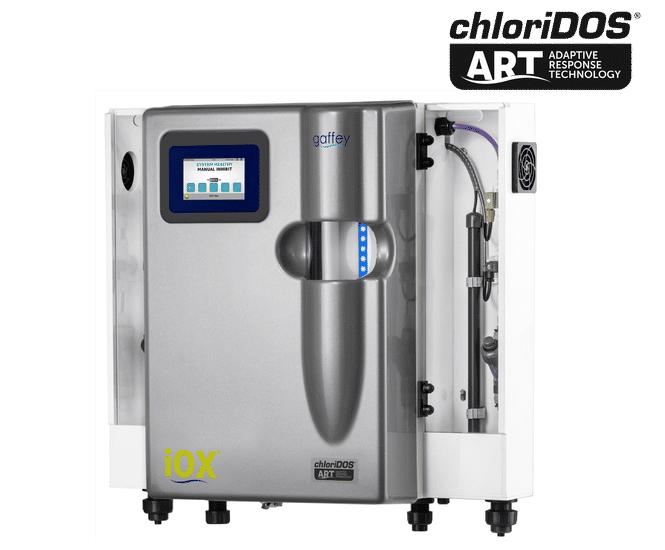

The chloriDOS® iOX®-2 is specifically designed to cater for industrial applications, offering chlorine dioxide generation and chemical blending capabilities for applications such as large hospital complexes, cooling towers, municipal water treatment, membrane biofouling control and factory CIP processes.

With incredible safety, efficiency and accuracy in the control of bacteria, biofilm and legionella, our in-situ chlorine dioxide systems really are unique.

chloriDOS® iOX® technology automatically draws and mixes precise amounts of acid and chlorite under vacuum. The reacted chlorine dioxide solution is homogenised volumetrically with cold water, prior to being safely dispensed as a dilute solution direct to the point of treatment or into an external product storage tank facility.

By incorporating our patented volumetric batch generation technology, iOX® is not only the most accurate on the market, but it’s also easily accessible, thanks to unmatched data reporting.

Our Modular units compact and are designed to be wall mounted, integrating seamlessly with your existing plant room equipment for space saving efficiency.

Our iOX® 2 5-2000 Modular system is available in a range of capacities to suit your output needs, up to 2000g per hour output.

Features:

  • Single lockable unit, IP65

  • Power supply: 110V to 230V (50-60Hz), 60W

  • Safe handling of chemical reagents under vacuum

  • Batch dilution volumetrically controlled

  • Precursor chemical suction volumetrically controlled

  • Simple, low maintenance frequency

  • Unique state-of-the-ART Adaptive Response Technology built in, allowing the system to adjust to changes in environmental or site conditions, delivering precise and consistent chlorine generation

chloriDOS® iOX®-2 Modular specifications

  • Treated water volume (@ 0.5mg/L) - Up to 4000m³/h, Up to 1050kgal/h

  • Capacity (kg/day ClO2) - 0.12 - 48

  • Capacity (lbs/day ClO2) - 0.26 - 106

  • Concentration (mg/L ClO2) - 500 - 2000

  • Rated Power (VA) - 60

  • Power Supply (V~) - 110-230V~
