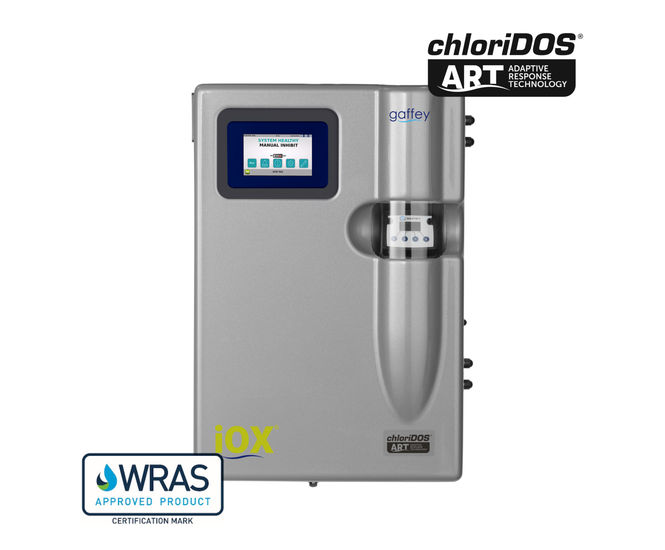

Offering a range of 5g/h up to 60g/h chlorine dioxide generation capacity. Wall mounted cabinet, iOX®-1 automatically draws and mixes precise amounts of acid and chlorite, under vacuum into an integral 8 litre product tank. Space for suitable sized dosing pump mounting inside cabinet for convenience.

Key features & benefits

  • Single lockable unit, IP65

  • Power supply: 110V to 230V (50-60Hz), 60W

  • Safe handling of chemical reagents under vacuum

  • Batch dilution volumetrically controlled

  • Precursor chemical suction volumetrically controlled

  • Simple, low maintenance frequency

  • Unique state-of-the-ART Adaptive Response Technology built in, allowing the system to adjust to changes in environmental or site conditions, delivering precise and consistent chlorine generation

  • HMI Touchscreen display and process mimic

  • Process water pulse input - programmable pulse output (for 3rd party dosing pump control)

  • Precursor chemical contents volume measurement and live usage data

  • TCP/IP comms ready, Modbus RTU optional

Specifications

  • Capacity (g/h) - 5 - 60

  • Capacity (KG/day) - 0.12 - 1.44

  • NaClO2 (l/h) - 0.125 - 1.5

  • HCL (l/h) - 0.125 - 1.5

  • Water Use (l/h) - 9.7 - 36.9

Applications / Sectors

  • Odour Control

  • Horticulture

  • Animal Husbandry

  • Poultry feed water disinfection

  • Fish Processing

  • Canning, brewing and bottling

  • Poultry and meat

  • Fruit and vegetable washing

  • Cleaning in place

  • Cooling tower biocide

  • Municipal water distribution

  • Legionella control in cold and hot water systems

  • Small water schemes
