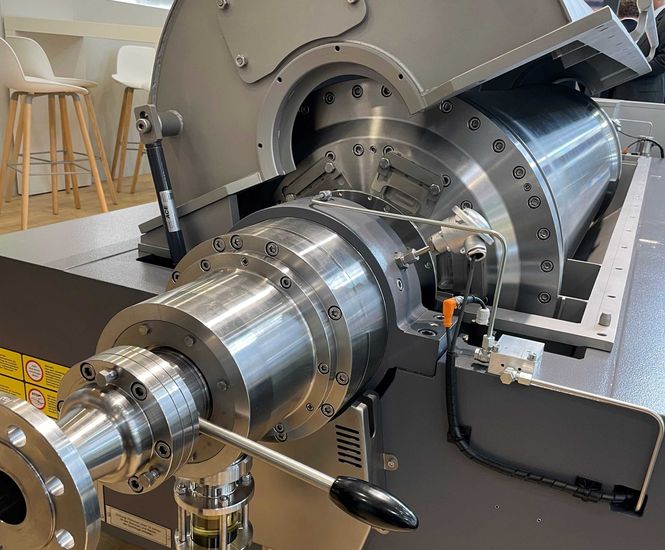

DecaTec model D574 is ideally suited to both 2- and 3-phase separation duties and can be used in oil recovery applications in ATEX zone 1 and 2 as well as the maximum possible hygienic food grade production designs.

The DecaTec series is based on decades of experience across various industries, combined with the goal of creating a model without compromises, especially for the highest demands of industry.

DecaTec can be flexibly adapted to suit the customer‘s needs as it is equipped with individual features as required and manufactured in the company's production facilities in Vilsbiburg, Germany.

  • The unit can be used on hot applications up to temp class T3 (70-120°C) and is suitable for sealed designs for nitrogen purging.

  • Both grease- and oil-lubricated versions are available.

  • Close-fit designs ensure maximum hygiene as well as the highest operational process performances.

  • Machines are available in three different model sizes offering capacities from 4 to 40 m3/hr.

The range of Decatec machines offer clients the maximum performance with the lowest cost of ownership.

Key features

  • Centripetal pump fixed or adjustable during operation

  • Processing of high-temperature products

  • Processing of toxic and highly oxidising products

  • Variable construction, up to one-off production

  • Maximum corrosion resistance

  • Special design with the highest surface quality, gap-free design, highest sealing resistance possible

  • Maximum possible hygiene level

  • Inertisation, focusing on minimum nitrogen consumption and differential pressure monitoring

  • Gas-tight design for overpressure operation

  • Processing of products up to temperature class T3 which form an explosive atmosphere

  • Installation of the complete machine in ATEX zone 1 and 2

  • Reduction of the ATEX zone within the machine by three zones

  • Maximum yield and dry content

  • Focus on production stability thanks to the use of the highest quality components
