GEMÜ P40 PD - tank bottom valve for sterile applications
Pneumatically-actuated tank bottom valve designed for sterile applications. The sealing principle of the valve is based on the GEMÜ PD sealing technology, which hermetically separates the actuator from the medium. All actuator parts (except the sealing and design elements) are made from stainless steel. Solutions can be adapted to the application
Click for full image

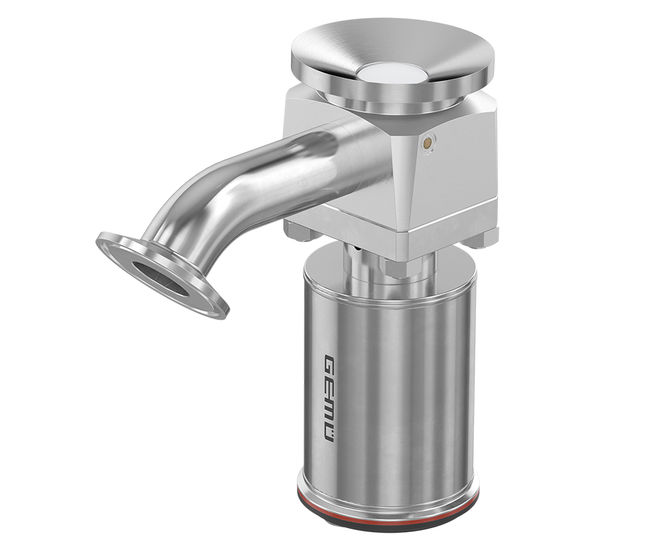

GEMÜ P40 PD tank bottom valve for sterile applications
Product details
Product name
GEMÜ P40 PD
Media
Food / drink
Pharmaceuticals
Valve type
Diaphragm valves
Construction
Stainless steel
Actuation
Pneumatic
Spring
Features
Hygienic
Pneumatically-actuated tank bottom valve designed for sterile applications.
The sealing principle of the valve is based on the GEMÜ PD sealing technology, which hermetically separates the actuator from the medium.
All actuator parts (except the sealing and design elements) are made from stainless steel.
Features
High flexibility
Solutions can be adapted to the application, increasing flexibility and extending the application area.
Convenience
Mounting on block enables quick, safe and simple actuator installation with just four nuts, saving time and increasing safety.
Reliable process safety
The optimised design results in a reduced risk of contamination and ensures optimum drainage characteristics. Thanks to an integrated disk spring, long-term valve tightness is ensured over the entire service life of the PD.
Proven system
The use of a plug diaphragm (PD) and its first-class properties may be new for tank bottom valves, but they are tried and tested in familiar designs. The dynamic preload of the patented PD developed specifically for tank bottom valves ensures low-maintenance operation.
