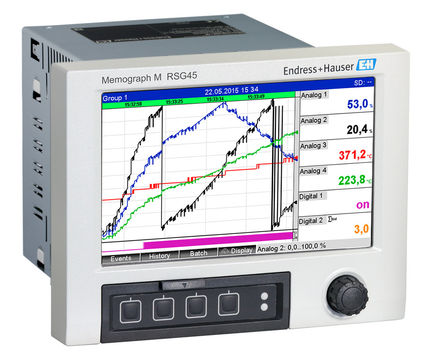

Memograph M RSG45 advanced data and energy manager with up to 20 analog/HART® inputs and 14 digital inputs.

A flexible and powerful system for organising process values. Thanks to its intuitive operation, Memograph M adapts quickly and easily to any application. The process values are clearly presented on the display and logged safely, limits are monitored and analysed. Via communication protocols, the measured and calculated values can be easily transferred to higher-level systems and plant modules can be interconnected. Also available as DIN rail version without display.

Usage

Process measuring technology
Power stations and energy supply
Steam boiler monitoring / efficiency calculation
Food and pharmaceutical industry
Plant and apparatus engineering and construction; milk pasteurisation plants
Environmental and climate measuring technology; storm overflow control
Quality assurance and production
Batch analysis; tele-alarm functions
iTHERM TrustSens calibration monitoring
Testing bays and laboratory applications

Benefits

High degree of data security: tamper-proof data storage and personalised access authorisation with electronic signature (FDA 21 CFR 11)
HART input card: HART sensors directly connected provide accurate process values for calculation and logging
HART gateway: time-saving direct access to HART sensors in the field with FieldCare using Memograph M without interrupting the measuring loop
Stainless steel front with touch operation: trouble-free operation in demanding environments such as hygienic or hazardous areas.
DIN rail version: compact device with small dimensions for cabinet mounting or remote field applications.
System capability: supports common fieldbuses (Modbus, Profibus DP, PROFINET, EtherNet/IP) for fast integration into diverse systems
Integrated web server: remote access to device operation and visualisation for lower maintenance costs
WebDAV: files saved on SD card transmitted directly to a PC via HTTP without any additional software.

Specifications

Data manager and data logger

Measuring principle
Data manager
Measuring principle
Data Logger
Function
Secure data recording and signal analysis
visualization
integrated web server for device set-up
HART(R) transparency, RSG45 as a HART modem
E-Mail notification (encrypted mails)
100 ms scan rate, high speed storage cycle 100 ms
modular design for simple expansion
data readout and processing via Field Data Manager Software
OPC server for indication of instantaneous values (optional)
Input
20 analog (max) (U, I, TC, RTD, frequency, pulse)
20 HART (max) (HART, 4…20mA)
14 digital (max) (control, event and counting inputs)
Output
12 relays (max)
2 analog (max) (I, pulse)
1 transmitter power supply
Interface
RS232/485
Ethernet
USB
Modbus RTU/TCP Slave
Modbus RTU/TCP Master
Profibus DP
PROFINET Device
EtherNet/IP Adapter
Storage/Recording
internal memory
SD card
USB flash drive
Display
TFT 7" colour graphic display
TFT 7" colour graphic display with touch panel
Housing
panel mounting with zink diecast bezel
panel mounting with stainless steel bezel
desktop housing
field housing
Power supply
100...230 V AC +/-10%
24V (-10%; +15%) AC/DC
Certificates
CE
EAC
UL (US und CA)
ATEX II2G Ex px IIC Gb
ATEX II2D Ex pD IIIC Db
UL listed
PROFINET certified
Software package
Batch software
Waste water software
Tele-alarm software
Energy software (water + steam)
Waste water + storm overflow + Tele Alarm
Tele-alarm software + energy software (water + steam)

Energy and application manager

Function
Mass flow and energy calculation for water and steam
Calculations
Mass/heat quantity
Heat quantity difference
Number of applications
8
Calculation standards
IAPWS-97
Communication
RS232/485
Ethernet
USB
Modbus RTU/TCP Slave
Modbus RTU/TCP Master
Profibus DP
PROFINET Device
EtherNet/IP Adapter
Power supply
Not defined
Loop power supply
24 V DC +/-15%
Protection class
IP65 (front-panel)
Input
0...20 universal
HART
6…14 digital
Output
2 analog
Dimensions (WxHxD)
195.2 x 149.2 x 2271mm (7.69" x 5.87" x 8.94")
Operation
Navigator on-site, web server and via FieldCare / DeviceCare
Display
7“ TFT
Software functions
Internal calculation for mass flow and energy
Certificates
CE
EAC
UL (US und CA)
ATEX II2G Ex px IIC Gb
ATEX II2D Ex pD IIIC Db
UL listed
PROFINET certified
