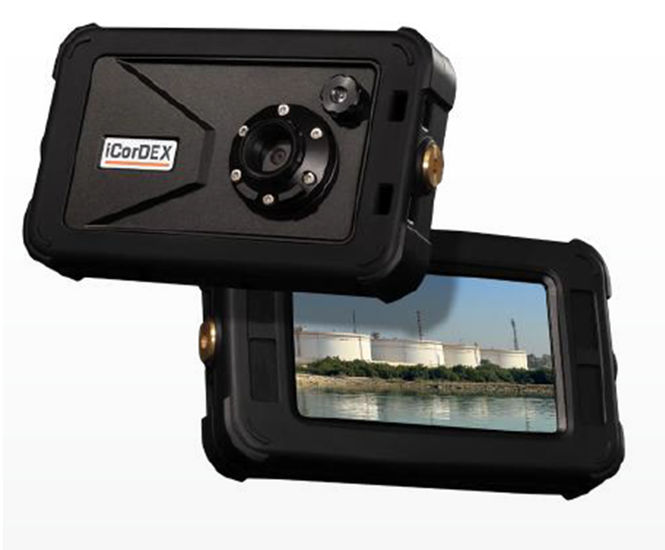

iCorDEX DCx13-3 is a handheld ATEX-certified digital camera made for safe image capture in hazardous or explosive environments. Features include a 13MP sensor, Android OS, and a large touchscreen for easy operation with gloves.

  • Handheld digital camera for use in potentially explosive atmospheres

  • ATEX II 3 G Ex nR IIC T6 Gc and II 3 D Ex tc IIIC T85°C Dc certified

  • 13MP sensor with automatic and manual motorised focus

  • Large 116mm (4.6”) touchscreen and pushbutton controls for gloved use

  • Image and data transfer via intrinsically secure USB datalink

  • 64GB onboard memory for up to 4K image capture

  • Closeup flash for low light and detailed area imaging

Applications

  • Inspection in hazardous or explosive industrial sites

  • Oil and gas facility monitoring

  • Chemical plant safety checks

  • Utilities and energy sector inspections

  • Maintenance in restricted or high-risk zones

Dimensions

Height 160mm

Width 97mm

Depth 30mm (excluding lens turret)

Weight 650g

Accreditations

ATEX II 3 G Ex nR IIC T6 Gc

ATEX II 3 D Ex tc IIIC T85°C Dc

Features

Safety & Mechanical

ATEX

II 3 G Ex nR IIC T6 Gc and II 3 D Ex tc IIIC T85°C Dc

Tamb

Ingress Protection

54

Dimensions

160mm (6.3”) x 97mm (3.8”) x 30mm (1.2”) (excluding lens turret)

Weight

650g/1.4lb

Lanyard Points

Yes (twin)

Imaging

Resolution (still)

13MP, 12MP, 8MP, 4MP, 3MP, 2MP, 1MP

Resolution (movie)

HD1080P, HD720

Zoom

x8 digital

ISO Adjust

AUTO, 100, 200, 400, 800, 1600

White Balance

YES

Exposure

YES

Countdown Timer

OFF, 2s, 5s, 10s

Power & Data

Battery

3.7V Lithium Ion, 2000mAh

Data & Charging

Intrinsically Secure USB Datalink

What’s Included

DCx13-3 ATEX Certified Digital Camera

Transport Pouch

Intrinsically Secure Datalink Cable

Wrist Strap

Manuals
