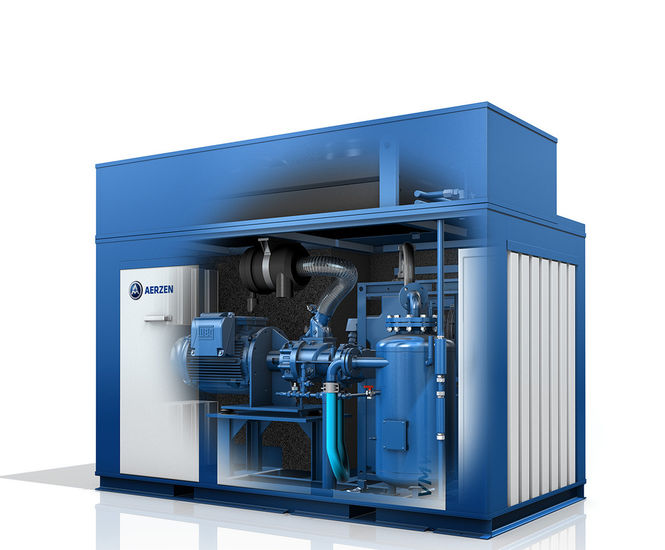

AERZEN SW Series water-injected single-stage screw compressor delivers oil free compressed air up to 13bar for air and neutral gases, using a sealed water circuit for cooling and dust removal. Made from corrosion-resistant stainless steel rotors. Volume flow from 144m3/h to 1,170m3/h. Max operating temperature 55°C. Power options 75kW or 110kW.

  • Oil-free screw air and neutral gas compressor

  • Water injection for increased energy efficiency and cooling

  • Sealed water circuit with integrated purification and condensate recovery

  • Stainless steel rotors resist corrosion

  • Low operating temperature protects compressor and downstream equipment

  • Insensitive to water quality, reducing operating costs

Applications

  • Chemical and petrochemical process technology

  • Clean compressed air applications

  • Electronics and semiconductor production

  • Food and beverage industry

  • Textile industry

  • Medical technology

Specification

Series

Pressure

Volume flow (m³/h)

Motor power (kW)

Width (W) mm

Depth (D) mm

Height (H) mm

Weight (kg)

SW 75

8 bar

738

75

2,800

1,500

2,200

2,000

SW 75

10 bar

672

75

2,800

1,500

2,200

2,000

SW 75

13 bar

582

75

2,800

1,500

2,200

2,000

SW 110

8 bar

1,170

110

3,400

1,500

2,273

3,000

SW 110

10 bar

1,032

110

3,400

1,500

2,273

3,000

SW 110

13 bar

882

110

3,400

1,500

2,273

3,000

Materials

High-alloy stainless steel rotors

Performance

Volume flow 144m3/h to 1,170m3/h

Differential pressure 4,000mbar to 13,000mbar

Maximum operating temperature 55°C

Corrosion resistant stainless steel rotors

Maintenance

Maintenance interval 16,000 operating hours
