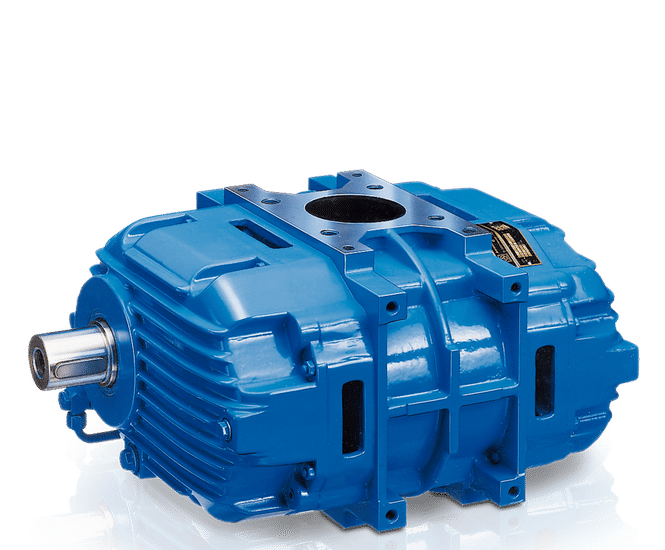

AERZEN bulk vehicle blowers are positive displacement blowers designed for tankers and silo trucks to generate pressure or vacuum for pneumatic loading and unloading.

  • Positive displacement blower for bulk and silo vehicle installation

  • Oil-free air conveyance

  • Volume flow range 1.500m3/h to 3.200m3/h

  • Differential pressure range -500mbar to 1.200mbar

  • Two-lobe rotor with separated conveying chamber and oil sumps

  • Direct or belt drive options

  • Horizontal or vertical flow

Applications

  • Pneumatic conveyance of bulk materials in tankers and silo trucks

  • Dust removal

  • Vacuum production

Dimensions

Volume flow 1.500m3/h to 3.200m3/h

Performance

Differential pressure -500mbar to 1.200mbar

Operating speed range 1.500 to 3.200 1/min

Installation

Suitable for upright, top-suspended, left or right-suspended positions

Direct coupling or narrow v-belt drive

Materials

Oil-free air path

Options and variations

Direct or belt drive versions

Horizontal or vertical flow configuration
