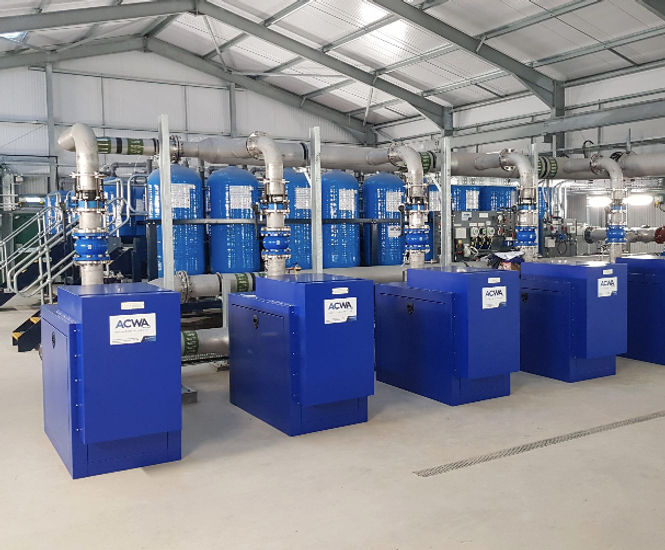

ACWA Nitreat® Ion Exchange Nitrate Removal Technology is a water treatment system designed to reduce nitrate levels in water using a continuous counter current ion exchange process. Installed in over 38 UK plants, it handles flows from 3MLD to 92MLD and removes up to 13,818kg/NO3 per day. System uses multiple vessels in series to minimise waste and optimise softened water use.

  • Ion exchange system for nitrate removal in municipal and industrial water treatment

  • Continuous counter current process reduces total wastewater output

  • Automated monitoring and control of nitrate, hardness, and conductivity

  • Direct discharge to sewer without need for waste buffering

  • Automated dynamic inlet, bypass, and blended discharge control

  • Long-term standby and mothballing capability

Applications

  • Nitrate removal from drinking water supplies

  • Environmental protection and water reuse

  • Industrial wastewater

  • Groundwater remediation

Dimensions

Flow capacity range 3MLD to 92MLD

Performance

Removes up to 13,818kg/NO3 per day

Manufacture

Assembled using DfMA (design for manufacture and assembly) techniques

Maintenance

Service and maintenance available
