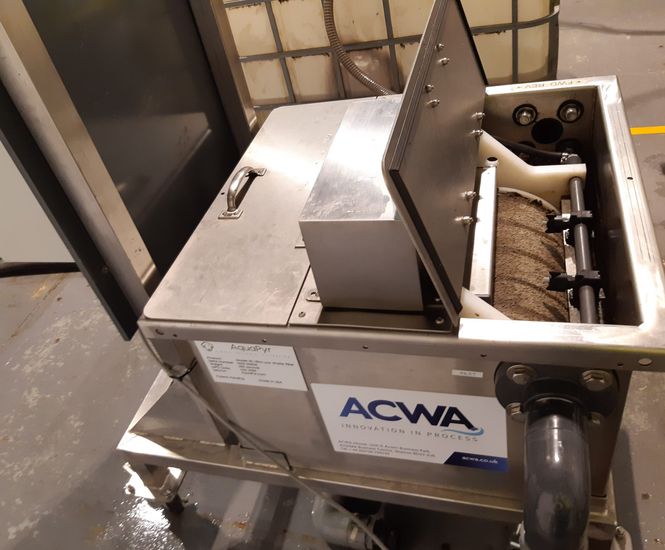

ACWA AquaPyr Ultra Low Waste Filter is a tertiary solids removal system for municipal and industrial wastewater, using a vacuum-cleaned pile cloth media filter. Removes suspended solids and phosphorous with less than 0.5% backwash waste and low power use. Treats flows from 5m3/h to 80m3/h, suitable for sites up to 2000PE. Compact, modular design with a small footprint.

  • Tertiary solids and phosphorous removal filter for wastewater treatment

  • Low backwash volume at less than 0.5% of treated flow

  • High dry solids recovery above 0.5% DS

  • Low power consumption and low head loss

  • Modular, space-saving design for easy installation

  • Can be used with renewable energy packs

Applications

  • Municipal and industrial wastewater treatment

  • Small rural works with space constraints

  • Sites requiring tertiary solids and phosphorous removal

  • Stormwater treatment

Specification

Model 25

Dimensions 740 x 710 x 620mm

Operating weight 300kg

Typical waste volume per clean (ltr) 0.8

Model 65

Dimensions 990 x 970 x 870mm

Operating weight 550kg

Typical waste volume per clean (ltr) 1.7

Model 100

Dimensions 1120 x 1090 x 1050mm

Operating weight 1000kg

Typical waste volume per clean (ltr) 3.0

Model 250

Dimensions 1550 x 1450 x 1200mm

Operating weight 2200kg

Typical waste volume per clean (ltr) 6.8

Model 440

Dimensions 1960 x 1770 x 1840mm

Operating weight 5800kg

Typical waste volume per clean (ltr) 13.0

Performance

Treats flows from 5m3/h to 80m3/h

Suitable for works up to 2000PE

Backwash waste less than 0.5% of treated flow

Dry solids recovery above 0.5% DS

Installation

Modular design with minimal civil works

Sustainability

Low energy use

Reduces need for extra storage tanks
