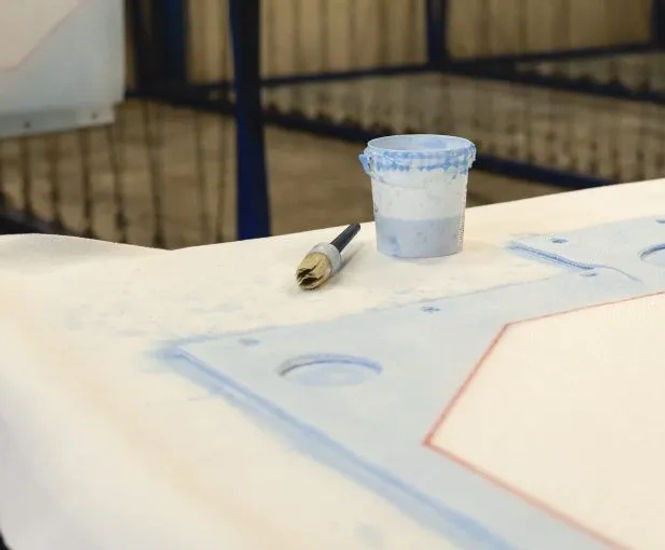

Filter Press Cloths are made for solid-liquid separation in filter presses, tailored to fit filter plates from 250mm square to 2400mm square. Made from natural and synthetic fibres including polyamide, polypropylene, polyester, polyethylene, PTFE and PEEK. Available in monofilament, anti-static monofilament, multifilament, and fibre yarns. Fabrics are heat-fixed and calendered for less than 1% elongation.

  • Filter cloths for use in filter presses for solid-liquid separation

  • Custom sizes to fit filter plates from 250mm square to 2400mm square

  • Made from a wide range of natural and synthetic fibres

  • Available in monofilament, anti-static monofilament, multifilament, and fibre yarns

  • Heat-fixed and calendered for dimensional stability

  • Elongation of less than 1% for consistent performance

Applications

Solid-liquid separation in industrial filter presses

Dimensions

250mm square to 2400mm square

Materials

Polyamide 6, 6.6, 6.10, 11 Rilsan, 12

Polypropylene

Polyester

Polymide P84

Polyethylene

Etfe

Ptfe

Peek

Natural fibres

Pbt

Pvdf

Options and variations

Monofilament

Anti-static monofilament

Multifilament (continuous wires)

Yarn of fibres

Performance

Elongation less than 1%
