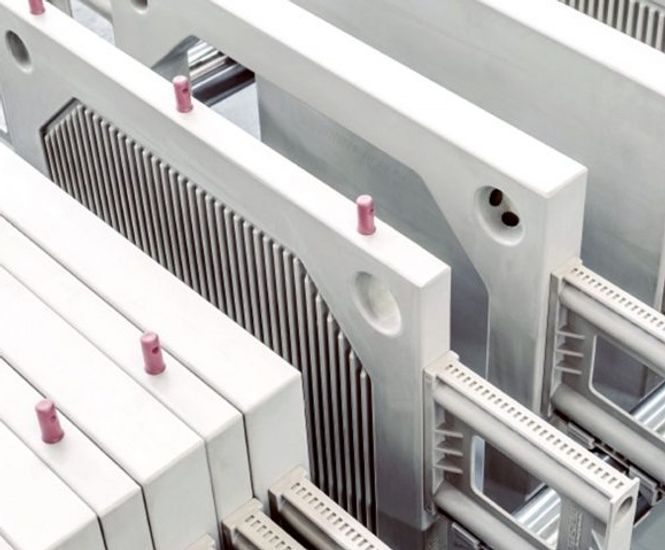

Polypropylene filter plates for filtration and dewatering processes, made from polypropylene and available in sizes from 250mm to 2400mm with filter cake thicknesses from 15mm to 50mm. Variations include recessed filter plates, membrane filter plates, and plate and frame filter plates, with options for centre feed, corner feed, gasketed styles, cake wash, air blowing, and heated plates. ATEX certified versions are available.

  • Polypropylene filter plates for filtration and dewatering

  • Sizes range from 250mm to 2400mm

  • Filter cake thicknesses from 15mm to 50mm

  • Recessed, membrane, and plate and frame variations

  • Options for centre feed, corner feed, and gasketed styles

  • Heated and ATEX certified plates available

  • Suitable for high filtration pressures up to 30bar

Applications

  • Filtration and dewatering in industrial and process settings

Dimensions

Size range 250mm to 2400mm

Filter cake thickness 15mm to 50mm

Materials

Polypropylene

Options and variations

Recessed filter plates

Membrane filter plates

Plate and frame filter plates

Centre feed, corner feed, and top centre feed options

Gasketed styles for leak reduction

Heated plates

ATEX certified plates

Performance

Membrane filter plates support filtration pressures up to 30bar

High filtration temperatures supported

Product accreditations

ATEX certified options available
