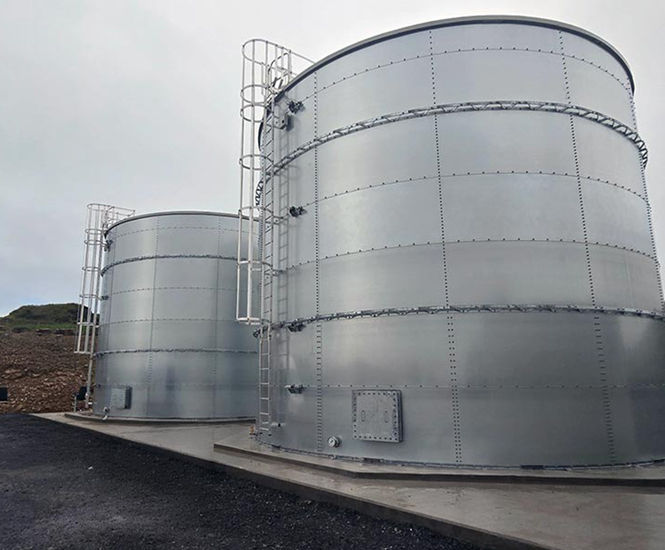

Balmoral cylindrical steel water storage tanks are made from galvanised, stainless, or aluminium steel with optional powder or epoxy coatings, designed for fire protection, potable, and irrigation water storage. Bolted sectional panels allow rapid on-site assembly without welding. FM Approval is held for fixed fire fighting sprinkler systems.

  • Cylindrical sectional tank system for water storage in fire protection, potable, and irrigation sectors
  • Bolted panel design enables fast installation and relocation
  • Hydraulic jack assembly reduces working at height and health risks
  • Pre-installed liner options separate water from tank shell
  • Galvanised steel shell with optional epoxy or polyester coatings for durability
  • Standard panels held in stock for quick delivery
  • Tank kits packed for efficient shipping

Applications

  • Fixed fire fighting sprinkler systems
  • Potable water storage
  • Irrigation water storage

Dimensions

Virtually unlimited dimensions and capacities

Materials

Galvanised steel

Stainless steel

Aluminium

EPDM, reinforced PVC, or butyl rubber liner

Finish

Galvanised zinc coating 305g/m² or 610g/m²

Optional epoxy or polyester coatings

Colours

Colour options for epoxy or polyester coatings

Options and variations

Liner or mastic sealed designs

Tank height and diameter can be adjusted to suit site footprint

Performance

Long durability and low maintenance due to galvanised and coated finishes

Installation

Bolted sectional panels assembled on site

Hydraulic jacks used for construction

No site welding required

Minimal concrete base structure needed

Product accreditations

FM Approval for fixed fire fighting sprinkler systems

Designs in accordance with NFPA 22
