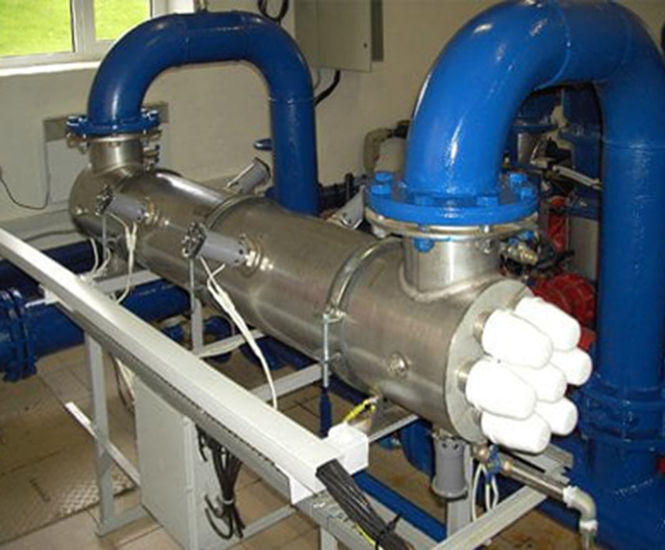

KALWAVE™ Water Disinfection is a water treatment system by Smith & Loveless Ltd. UK designed to inactivate and eliminate pathogens in water using combined UV and ultrasound technology. Delivers up to 99.9999% pathogen reduction, with high efficiency even in water with low UV transmittance and high solids. No mechanical or chemical cleaning is required, reducing maintenance and risk of contamination.

  • Water disinfection system using combined UV and ultrasound
  • Achieves up to 99.9999% pathogen inactivation
  • Maintains optimal UV transmittance with no residue build-up on quartz sleeves
  • No mechanical or chemical cleaning needed
  • Low energy use: 0.008kWh per 1m³ for drinking water, 0.02kWh per 1m³ for industrial or sewage effluent
  • Short exposure time: 5 seconds of combined treatment equals 30 seconds of UV alone
  • Reduces risk of microorganism reactivation during storage
  • Compact system size compared to conventional UV systems

Applications

  • Disinfection of drinking water, industrial water, and treated sewage effluent

Performance

Bactericidal effect equivalent to a UV dose of 75-150mJ/cm²

High equivalent UV dose up to 70mJ/cm²

Up to 99.9999% efficiency in pathogen inactivation

Low energy consumption: 0.008kWh per 1m³ (drinking water), 0.02kWh per 1m³ (industrial/sewage effluent)

5 seconds of combined UV and ultrasound equals 30 seconds of UV alone

Maintenance

No mechanical or chemical cleaning required

No accumulation of biological or chemical residue on quartz sleeves
