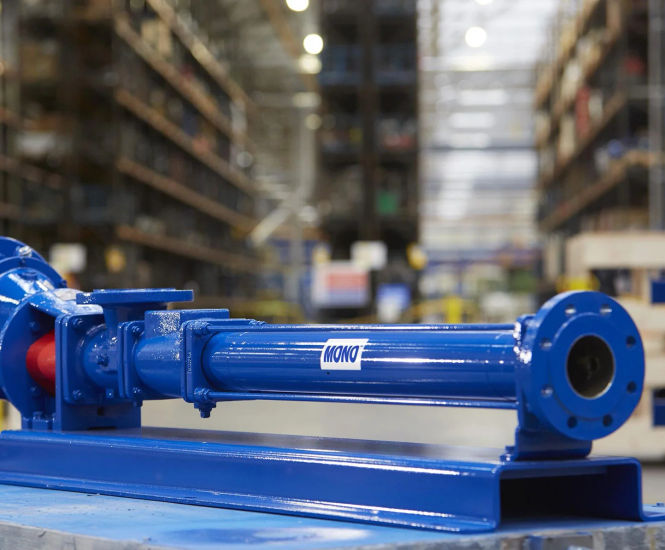

Compact C Pump is a compact positive displacement pump designed for accurate dosing and process control in space-limited installations. Made for moving abrasive fluids, it supports suction lift up to 28ft and allows variable speed operation. Self-priming design and inspection covers support ease of use and maintenance.

  • Compact positive displacement pump for dosing and process control

  • High pressure / long haul pumping

  • Handles abrasive fluids and low-shear pumping

  • Low running speeds for reduced wear during abrasive applications

  • Suction lift capability up to 8.5m

  • Self-priming operation

  • Inspection covers for maintenance access

  • Variable speed for dosing accuracy

Applications

  • Domestic and industrial effluent

  • Hydrated lime slurry

  • Sludge

  • Shear sensitive latex emulsion

  • Milk curds, sauces, fruit juices

  • Industrial chemicals and detergents

  • Starch slurries

  • Coating clays, gypsum and silicate

  • paper stocks

  • Agricultural slurries

Materials

Available in cast iron or stainless steel

Choice of rotor and stator materials

Performance

Suction lift up to 8.5m

Capacity up to 400m3/h

Pressure up to 24 bar

Temperature from -10 °C - 100 °C
