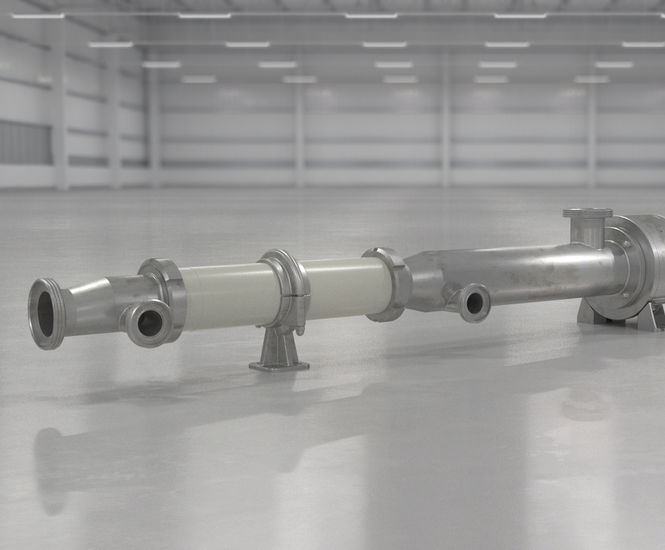

Hygienic Pump is a progressive cavity pump designed for gentle handling of solids and shear-sensitive products in food and beverage processing. Made for easy cleaning with quick disassembly, it handles viscosities over 1,000,000cps and solids up to 25mm diameter. 3-A certified for hygienic use, it supports variable speed control for accurate dosing and metered flow.

  • Progressive cavity pump for gentle transfer of solids and viscous liquids

  • 3-A certification for hygienic applications

  • Quick disassembly design for easy cleaning

  • Non-pulsating, metered flow suitable for batching

  • No valves to clog, stick, or vapor lock

  • Handles solids up to 25mm diameter

  • Detachable titanium flexishaft for on-site maintenance

  • Independent replacement of rotor and flexishaft reduces cost of ownership

Applications

  • Food and beverage processing including salad dressings, salsas, diced fruits, vegetables, soups, peanut butter, candies, jam, soups, juices, citric acid, vinegar, soybean slurries, yeast, and nougat

Performance

  • Handles viscosities over 1,000,000cps

  • Transfers solids up to 25mm diameter

Capacity range

Max differential pressure

Single stage (F1XXK models)

1.02 – 107 m³/hr (4.5 – 470 USGPM)

6 bar (87 psi)

Two stage (F1XXB models)

0.5 – 43 m³/hr (2.2 – 190 USGPM)

12 bar (174 psi)

Product accreditations

  • 3-A certification

Maintenance

  • Easy on-site maintenance with detachable flexishaft and independent rotor replacement
