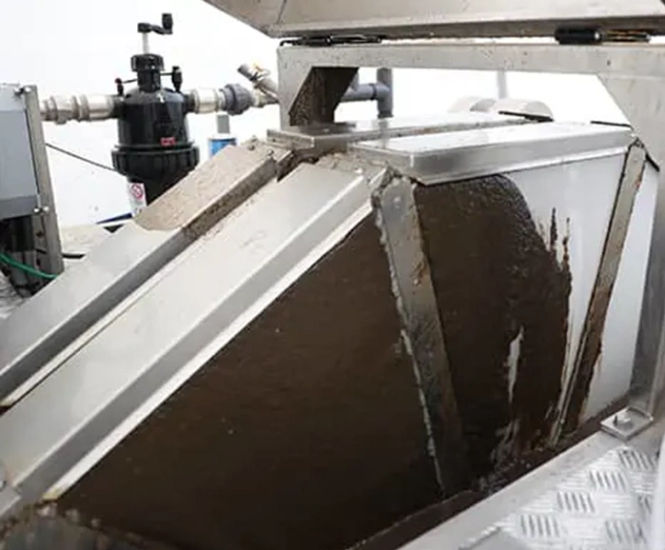

Sanitaire Taron activated sludge filter is a compact filtration system for wastewater treatment plants, designed to separate biological solids from activated sludge. System uses rotating vertical discs with micro mesh panels to form a dynamic sludge cake layer for solids removal. Installs directly in bioreactors or as a bolt-on unit, reducing plant footprint by up to 60% compared to traditional clarifiers.

  • Disc filter system for high solids separation in activated sludge processes

  • Handles mixed liquor suspended solids (MLSS) from 4000mg/L to 12000mg/L

  • Typical filtrate total suspended solids (TSS) less than 10mg/L

  • Power consumption below 0.1kWh/m³

  • Modular design allows retrofit, rental, or new installations

  • Arrives fully configured, requiring minimal civil works and no process interruption

  • Easy stand-by operation for variable hydraulic loads

Applications

  • Municipal and industrial wastewater treatment plants requiring solids separation and capacity expansion

Dimensions

Disc diameter 2.2m

Number of discs 2–12

Filter length 2150–4820mm

Filter width 2236mm

Filter height 2534mm

Filter weight 1900–3780kg

Materials

Made from 304 stainless steel or 316 stainless steel

Options and variations

Available with 2 to 12 rotating discs

Performance

Typical flowrate up to 80m³/h

Liquid temperature 10–35°C

Sludge volume index (SVI) less than 150mL/g

Total sludge age 8–25 days

Electrical protection class IP55

Connected load 1.5–4.6kW

Full load current 16A

Voltage 400V

Frequency 50Hz

Installation

Installs inside biological treatment tanks or as external bolt-on units in parallel with existing clarifiers

No excavation or major civil works required

Product accreditations

Conforms to EN60204 and EN61439-1

CE certified

Specifications

Typical application requirements

Liquid temperature

10-35°C

Feed

Aerobic activated sludge

MLSS

4 000 to 12 000 mg/L

Total sludge age

8 to 25 days

Sludge Volume Index (SVI)

< 150 mL/g
