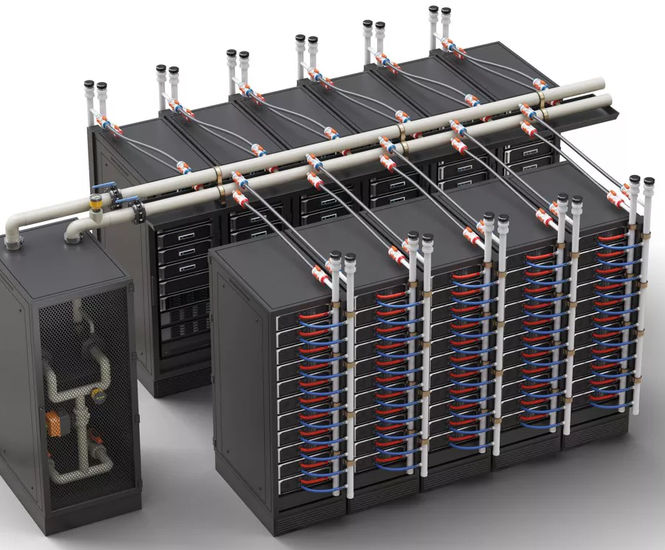

LiquidCore is a polymer piping system engineered for single-phase direct-to-chip liquid cooling in data centres. The system enables stable flow, coolant purity and energy-efficient circulation between the coolant distribution unit (CDU) and cold plates, resisting corrosion, scaling and contamination throughout its service life. Modular, pre-fabricated build, reduces installation time and supports long-term operational reliability.

  • 100% corrosion-free polymer construction with an expected service life of 25 years+

  • Smooth internal surfaces maintain deionised water purity and minimise coolant degradation

  • Pre-fabricated modules enable fast installation with reduced flushing and commissioning time

  • Up to 60% lighter than comparable metal piping alternatives

  • Up to 80% lower CO2 footprint than metal systems

  • Patented Quick Connect Valve 700 dual-ball valve for fast, safe rack integration

  • Custom-engineered in-rack manifold ensures even coolant distribution to every server tray

  • UL94 V-0 fire-rated manifold construction

  • Full valve actuation and instrumentation portfolio for integrated fluid control

  • End-to-end design, engineering and pre-fabrication support

Materials

Rack distribution piping made from beta-nucleated polypropylene (PP-H)

Quick Connect Valve 700 and in-rack manifold made from polyvinylidene fluoride (PVDF/SYGEF).

ABS, ECTFE and other high-performance polymers for demanding technology cooling (TCS) and industrial applications.

Performance

  • Diameter range: up to Ø1600mm

  • Operating temperature range: -50°C to +140°C

  • Pressure: up to 16 bar

  • DN10 to DN1000mm

Installation

Delivered pre-fabricated.

Jointing options include infrared (IR) fusion, offering contact-free melting to eliminate contamination risk

Weld Bead Inspection (WBI), using photosensory technology for real-time, non-destructive verification of joint quality

Electrofusion, used for the final on-site joint in confined spaces.

Accreditations

In-rack manifold construction carries a UL94 V-0 fire rating.

Design and support

GF provides end-to-end design, engineering and pre-fabrication support.

Design support covers pipe stress analysis, thermal and flow simulation, 3D modelling and structural integration of pipe racks and modules.

Options and variations

LiquidCore's polymer piping can be used for evaporative coolers, chillers, water-cooled condensers, dry coolers, cooling towers and heat pumps.

Facility Water System (FWS) configurations use pre-fabricated pump station skids in polyethylene (PE100) for faster installation and simplified logistics.
