Chemicals / parameters Oxygen
Suitability Process liquids
Type Fixed
System type Sensors

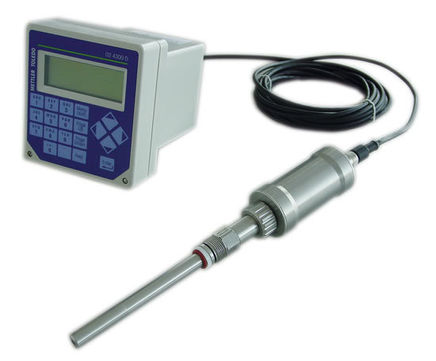

Based on a chemo-optical measurement principle, the InPro 6880i dissolved oxygen sensor offers significant advantages for the biopharm industry.

High operational availability, combined with excellent measurement quality, enable it to address critical issues such as operational assurance and batch-to-batch consistency.

The optical sensor does not need electrolyte or polarisation. This reduces maintenance time to a matter of minutes, which in turn extends the sensors operational availability and lowers the risk of batch contamination.

The simplicity of maintenance also eliminates inadvertent handling errors.

Standard data

  • Process pressure range: 0.2-6 bar
  • Process temperature range: 0-60°C
  • Steam sterilisable: yes
  • Autoclavable: yes
  • Detection limit: 8µg/L / 8 ppb =
  • Accuracy: ±1%+ 8ppb
  • Response time at 25°C: T98% < 45 seconds
  • Material: 316L stainless steel
  • Diagnostics: built-in CIP/SIP/autoclave counter
  • Certificates: FDA/USP VI; Mat Cert 3.1; Surface Finish Cert 2.1; ATEX/FM (pending)


Based on a chemo-optical measurement principle, the InPro 6880i dissolved oxygen sensor offers significant advantages for the biopharm industry.

High operational availability, combined with excellent measurement quality, enable it to address critical issues such as operational assurance and batch-to-batch consistency.

The optical sensor does not need electrolyte or polarisation. This reduces maintenance time to a matter of minutes, which in turn extends the sensors operational availability and lowers the risk of batch contamination.

The simplicity of maintenance also eliminates inadvertent handling errors.

Standard data

  • Process pressure range: 0.2-6 bar
  • Process temperature range: 0-60°C
  • Steam sterilisable: yes
  • Autoclavable: yes
  • Detection limit: 8µg/L / 8 ppb =
  • Accuracy: ±1%+ 8ppb
  • Response time at 25°C: T98% < 45 seconds
  • Material: 316L stainless steel
  • Diagnostics: built-in CIP/SIP/autoclave counter
  • Certificates: FDA/USP VI; Mat Cert 3.1; Surface Finish Cert 2.1; ATEX/FM (pending)
