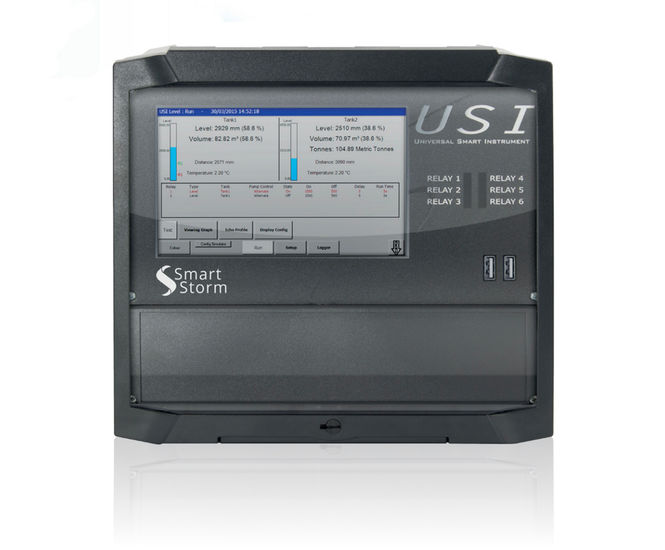

Universal Smart Instrument (USI) by Smart Storm is a multiparameter water quality instrument for wastewater monitoring, combining ultrasonic flow measurement and pH/Redox sensing in one device. Measures up to seven water quality parameters simultaneously and replaces several standard instruments.

  • Multiparameter device for flow and water quality measurement
  • Supports up to 3 digital and 4 ion-selective electrode (ISE) sensors at once
  • Measures turbidity, TSS, dissolved oxygen, temperature, conductivity, ammonia, ammonium, chloride, calcium, fluoride, nitrate, and potassium
  • Integral 30-year data logger and PC-based reporting software
  • Weatherproof IP66/4X wall-mounted enclosure
  • Six programmable relays and 4-20mA inputs/outputs
  • User-friendly programming and installation options for tanks, channels, or pipes

Applications

  • Trade effluent monitoring
  • Wastewater monitoring
  • Drinking water monitoring
  • Water quality monitoring
  • Seawater monitoring
  • Irrigation and storm water channels

Performance

IP66/4X weatherproof rating

Integral 30-year data logger

Installation

Wall-mounted enclosure

Sensors can be free mounted in tanks or channels, or inserted into pipes using bespoke brackets
