Biobulk® CSTR - for anaerobic wastewater treatment
Continually stirred tank reactor (CSTR) for the anaerobic treatment of industrial effluents with significantly high amounts of suspended solids, including fats, oil and grease. Accommodates a medium organic loading capacity of 2-5kg COD/m3/day. Biogas produced as a byproduct can be used as an energy source
Click for full image

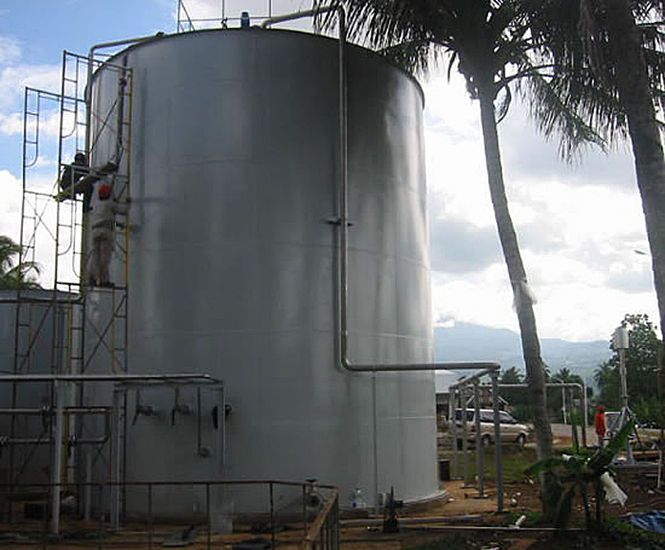

Biobulk® CSTR treats effluent with high amounts of suspended solids including fats, oil and grease
Continually stirred tank reactor (CSTR) for the anaerobic treatment of industrial effluents with significantly high amounts of suspended solids, including fats, oil and grease. Anaerobic equivalent of conventional activated sludge digestion.
Key features
Tolerance for high concentrations of TSS, fats, oil and grease (FOG)
Medium volumetric loading capacity (2-5kg COD/m3/day)
Passive degassing prior to clarification
Energy source from biogas production
Easy and economical operation
The Biobulk® features a special internal mixing, as well as passive degassing prior to clarification. It can accommodate a medium organic loading capacity of 2-5kg COD/m3/day.
The mixed liquor suspended solids (MLSS) concentration in the reactor is controlled by periodic wasting of biomass returned from the clarifier.
The process is simple to operate and maintain and is an effective method for the anaerobic digestion of wastewaters containing high concentrations of TSS and/or FOG.
Biogas producted as byproduct is temporarily collected in the headspace of the Biobulk® CSTR, which acts as a biogas holder.
Biogas can be used as a source of renewable energy.
